2008 Pontiac G5 L4-2.2LFACTORY OEM SERVICE PROCEDURE
Electronic Throttle Control Module: Locations
Powertrain Component Views

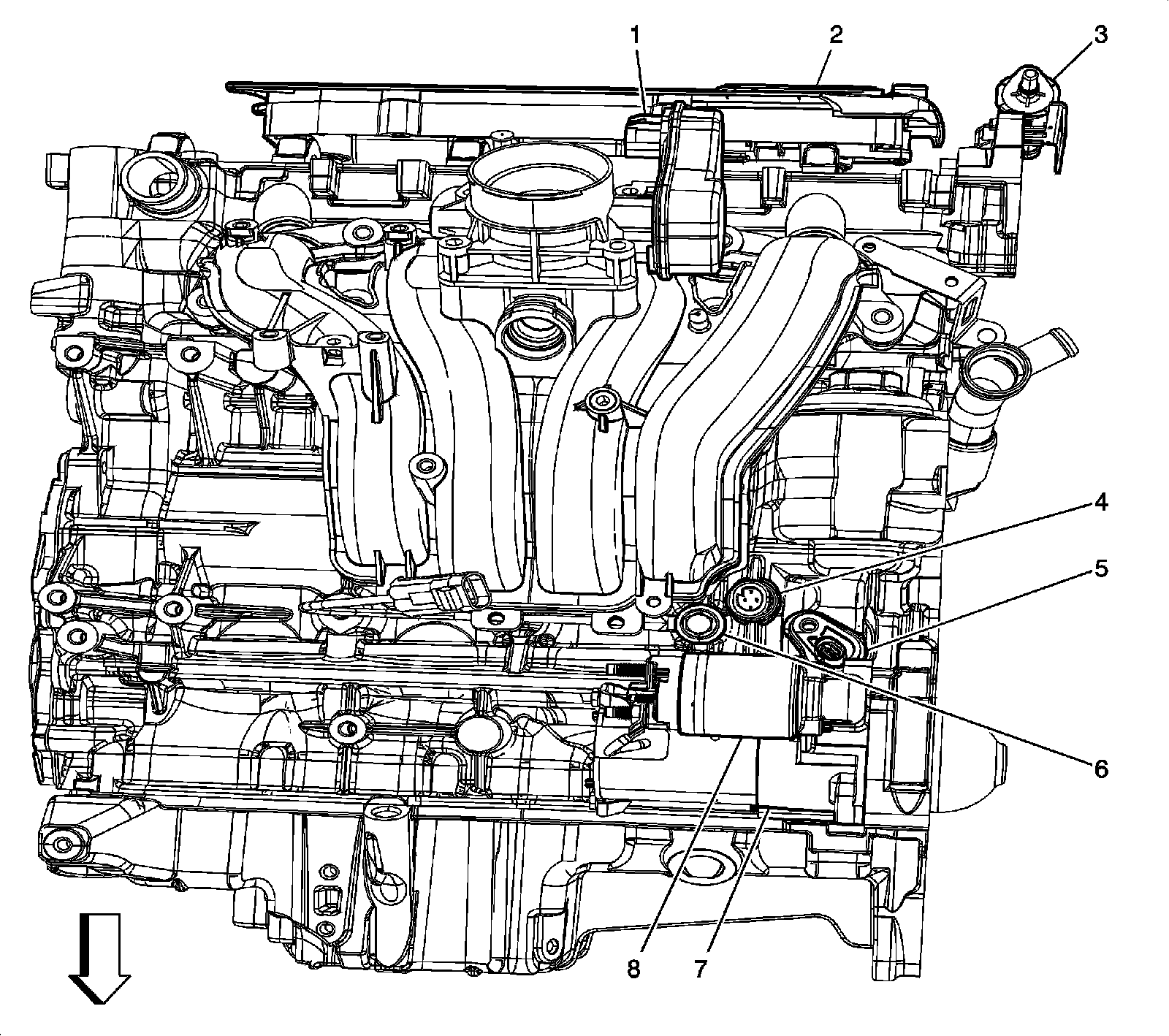

Front of the Engine (L61)
1 - Throttle Actuator Control (TAC) Module
2 - Ignition Control Module (ICM)
3 - Evaporative Emission (EVAP) Canister Purge Solenoid
4 - Engine Oil Pressure (EOP) Switch
5 - Crankshaft Position (CKP) Sensor
6 - Knock Sensor (KS)
7 - Starter
8 - Starter Solenoid

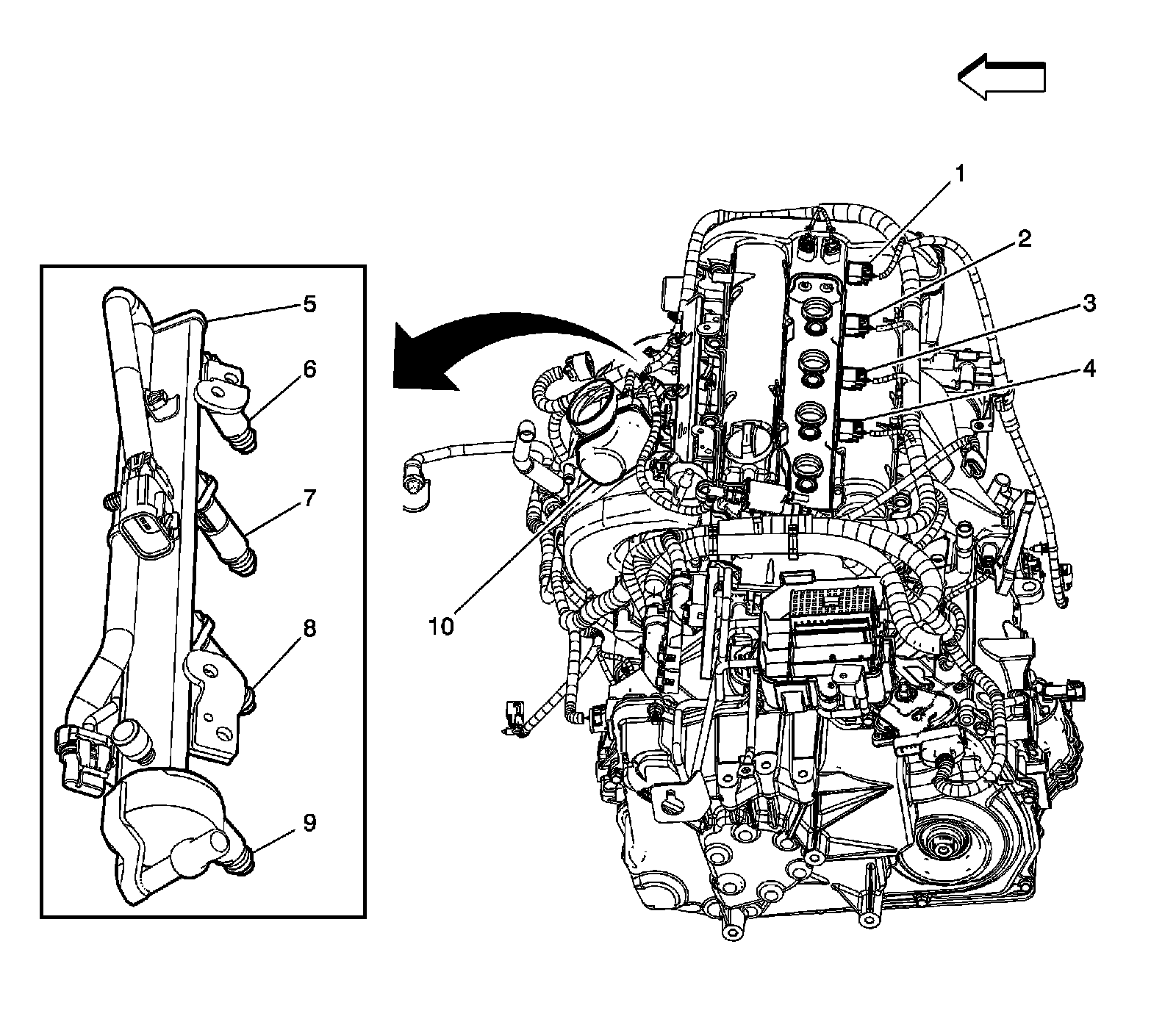

Left Side View of Engine
1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3
4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module

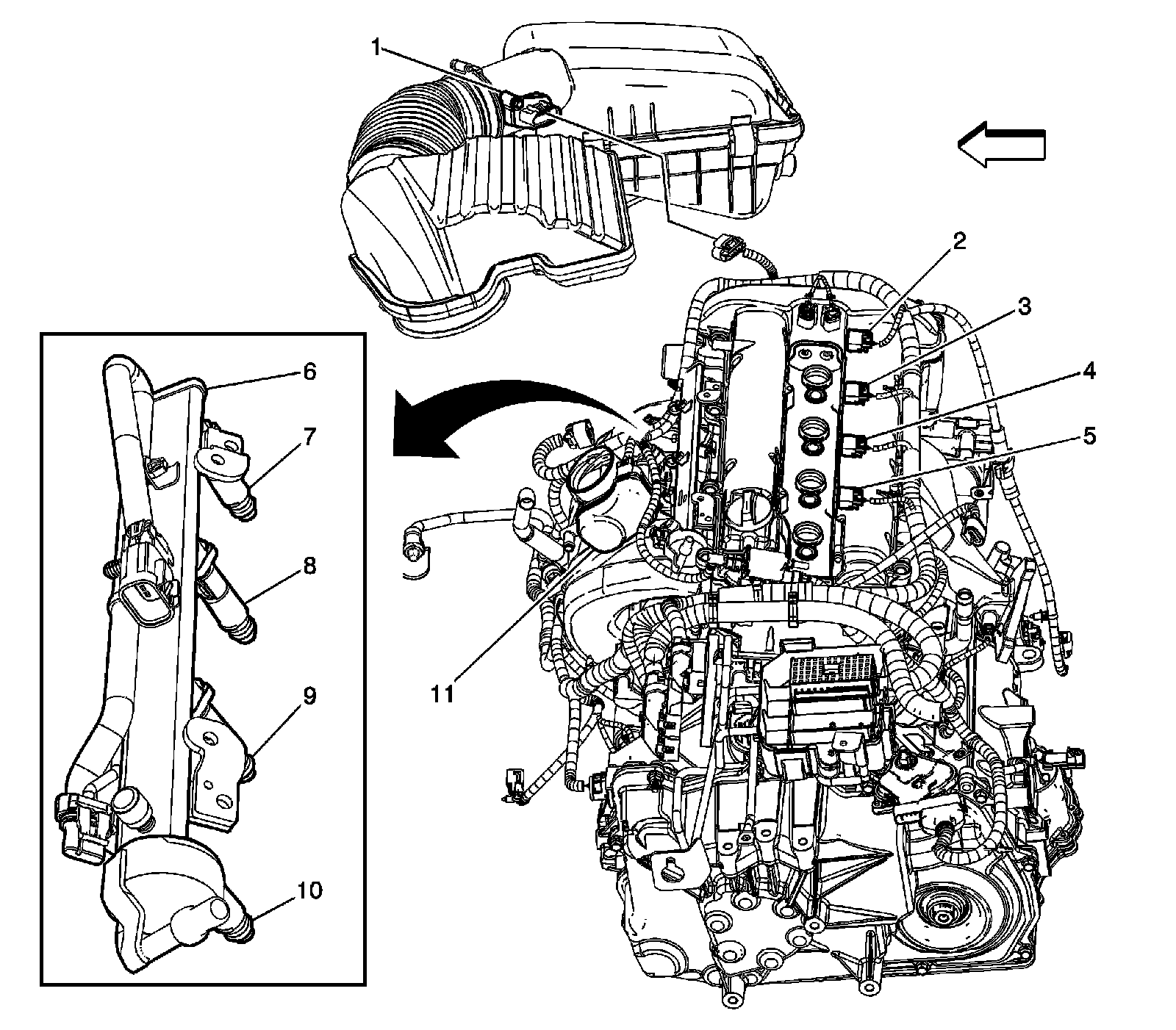

Left Side View of Engine
1 - MAF/IAT Sensor
2 - Ignition Coil Module 1
3 - Ignition Coil Module 2
4 - Ignition Coil Module 3
5 - Ignition Coil Module 4
6 - Fuel Rail
7 - Fuel Injector 1
8 - Fuel Injector 2
9 - Fuel Injector 3
10 - Fuel Injector 4
11 - Throttle Actuator Control (TAC) Module
