2007 Pontiac Torrent FWDFACTORY OEM SERVICE PROCEDURE

Electronic Power Steering Motor Control Module Replacement

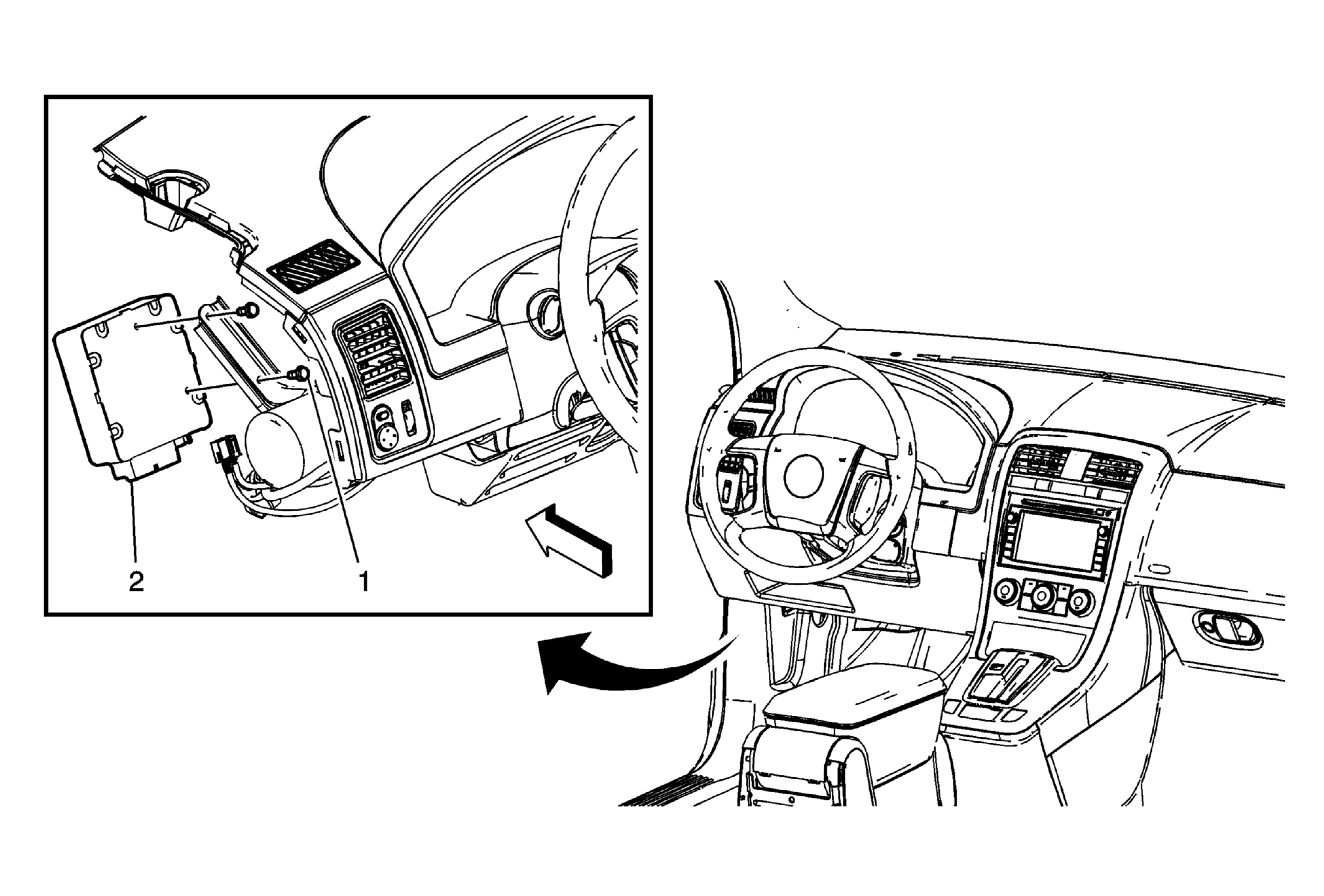

Fig 1: View Of Electronic Power Steering Motor Control Module
GM1848011Courtesy of GENERAL MOTORS CORP.
Electronic Power Steering Motor Control Module Replacement

Callout Component Name
Preliminary Procedures:
  1. Remove the left side instrument panel outer trim cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT - LEFT SIDE .
  2. Remove the left side instrument panel insulator panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE .
  3. Remove the driver knee bolster reinforcement. Refer to DRIVER KNEE BOLSTER REINFORCEMENT REPLACEMENT .
1 Electronic Power Steering Motor Control Module Bolt (Qty: 2)
NOTE: Refer to FASTENER NOTICE .

Tighten:  11.5 N.m (102 lb in)
2 Electronic Power Steering Motor Control Module
Procedure:
  1. Disconnect any electrical connectors as needed.
  2. After repairs, perform the proper programming and calibration procedures. Refer to POWER STEERING CONTROL MODULE PROGRAMMING AND SETUP .
