2007 Pontiac Torrent FWDFACTORY OEM SERVICE PROCEDURE

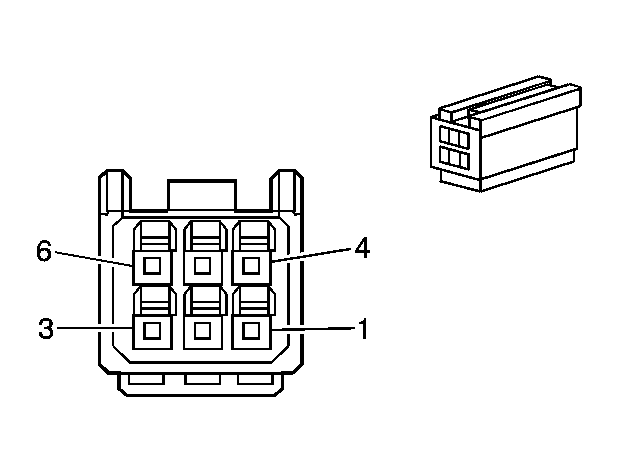

Power Steering Control Module (PSCM) C2
Power Steering Control Module (PSCM) C2 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Power Steering Control Module (PSCM) C2 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | RD | - | Rotational Sensor Exciting |
| 2 | - | - | Not Used |
| 3 | BK | - | Rotational Sensor Exciting GND |
| 4 | - | - | Not Used |
| 5 | D-BU | - | Rotational Sensor COS |
| 6 | YE | - | Rotational Sensor SN |
