2007 Pontiac Torrent FWDFACTORY OEM SERVICE PROCEDURE

Left Side of the I/P

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

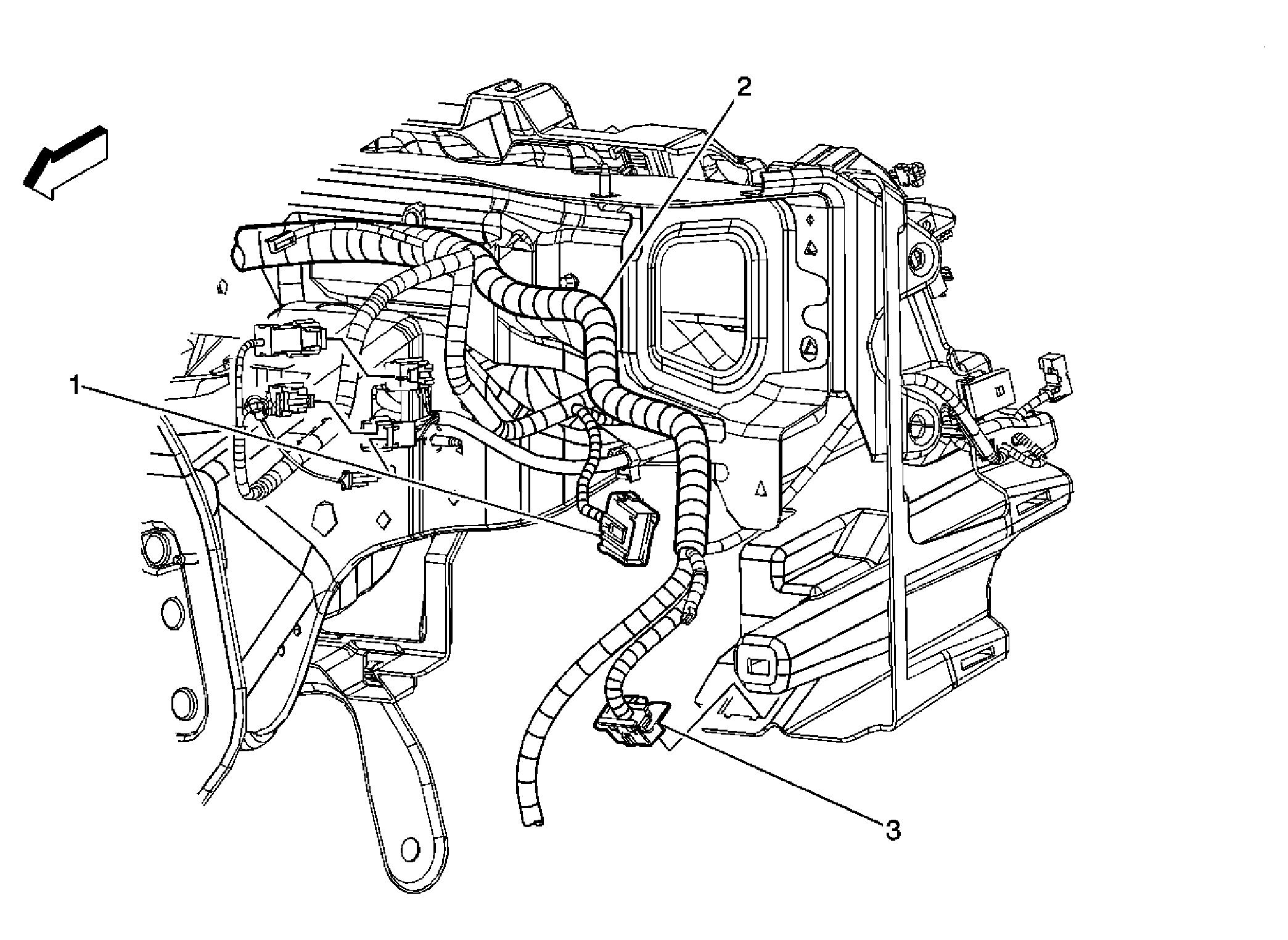

Fig 1: Left Side of the I/P
GM1628999Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP200
2 I/P Harness
3 Data Link Connector (DLC)
