2007 Pontiac Solstice L4-2.0L TurboFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
Mass Airflow Sensor Replacement
Removal Procedure

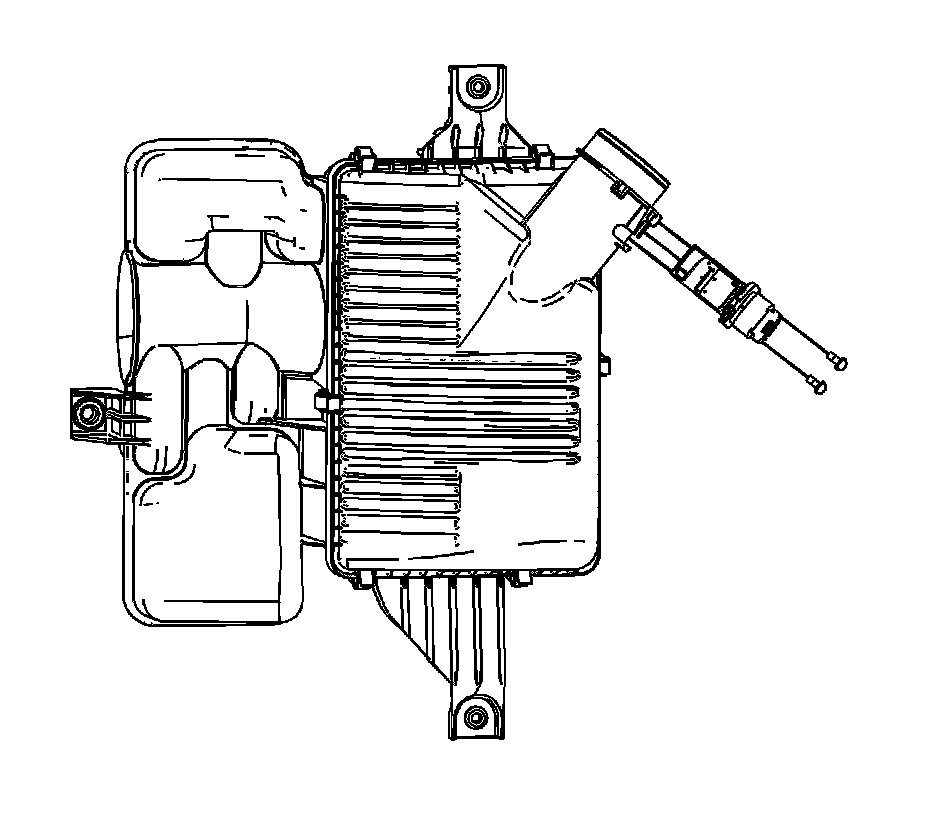

1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF) sensor.
2. Remove the MAF sensor screws.
3. Remove the MAF sensor.
Installation Procedure
1. Install the MAF sensor.
Notice: Refer to Fastener Notice.
2. Install the MAF sensor screws.
Tighten the screws to 0.6 N.m (5 lb in).
3. Connect the engine wiring harness electrical connector to the MAF sensor.
