2007 Pontiac Solstice Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Toe Adjustment

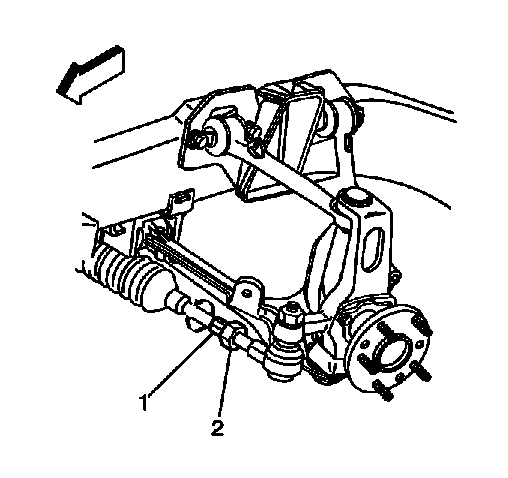

- Loosen the jam nut on the tie rod (2).
- Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .
- Tighten the jam nut on the tie rod.
Tighten: Tighten the front tie rod jam nut to 68 N.m (50 lb ft).
- Check the toe setting after tightening.
- Adjust the toe setting if necessary.
NOTE:
Refer to Fastener Notice
.
