2007 Pontiac Solstice Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Outlet Component Views

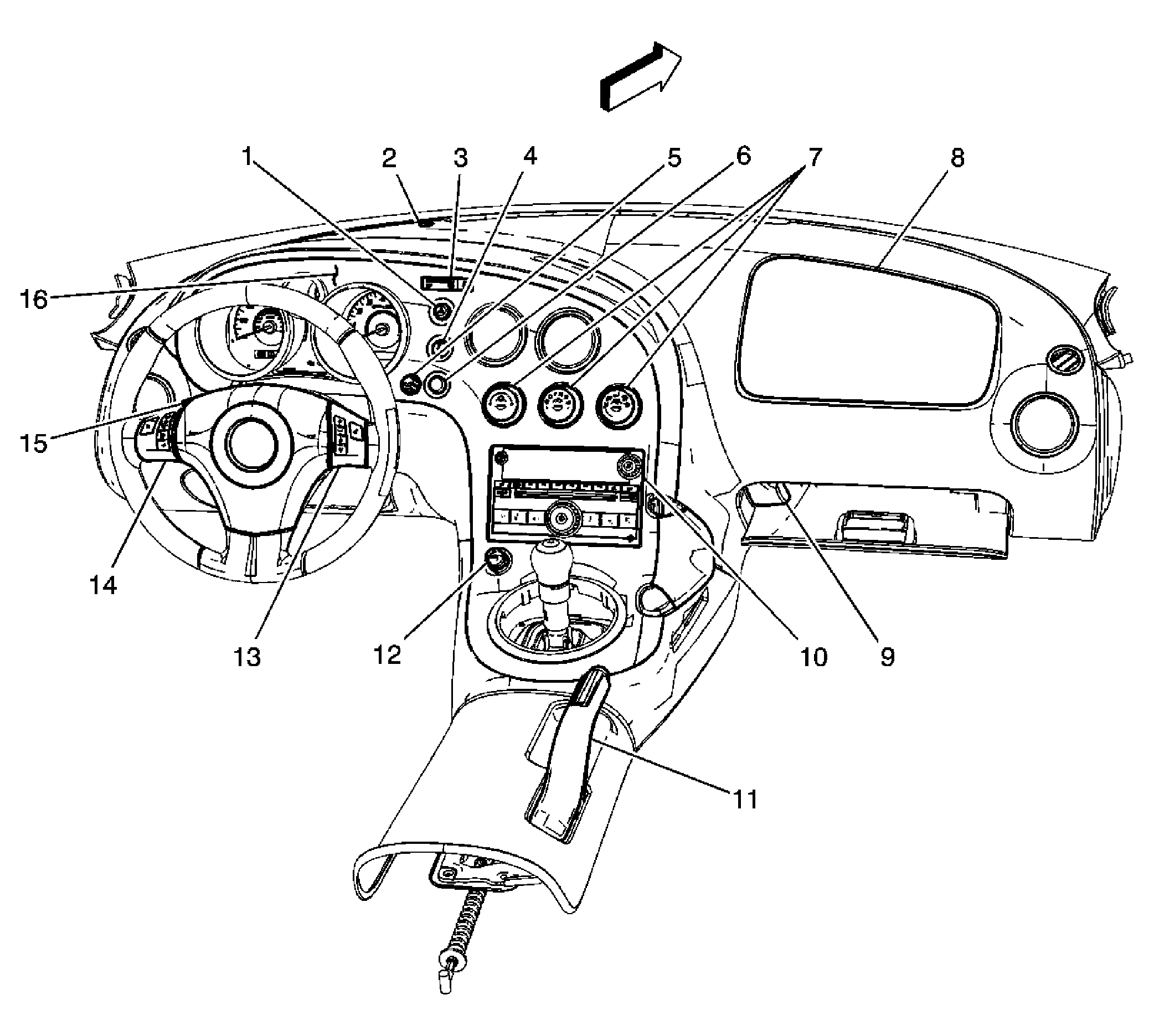

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Hazard Switch |
| 2 | Ambient Light Sensor |
| 3 | Inflatable Restraint Passenger Airbag On/Off Indicator |
| 4 | Fog Lamp Switch (T96) |
| 5 | I/P Dimmer Switch |
| 6 | Traction Control Switch (if equipped) |
| 7 | HVAC Control Module |
| 8 | Inflatable Restraint I/P Module |
| 9 | Rear Compartment Lid Release Switch |
| 10 | Radio/Navigation Unit (UE1/U2K) |
| 11 | Park Brake Lever |
| 12 | Auxiliary Power Outlet |
| 13 | Steering Wheel - Controls - Right |
| 14 | Steering Wheel - Controls - Left |
| 15 | Inflatable Restraint Steering Wheel Module |
| 16 | Instrument Panel Cluster (IPC) |
