2007 Pontiac Grand Prix BaseFACTORY OEM SERVICE PROCEDURE

Installation Procedure

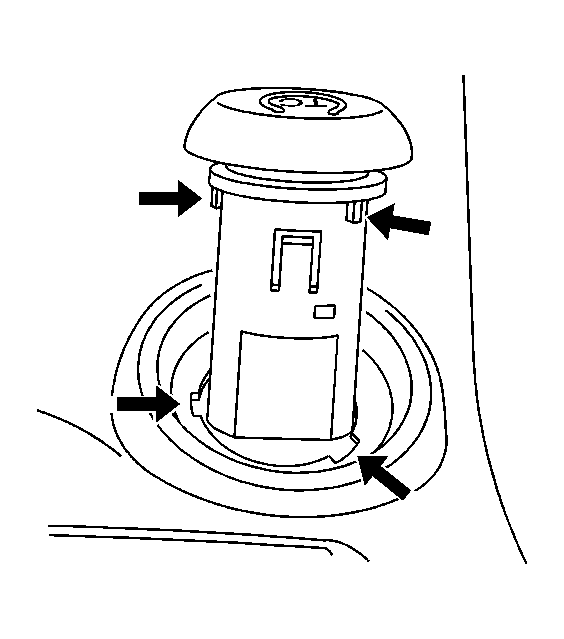

Fig 1: Aligning Tabs On Traction Control Switch

GM901520

Courtesy of GENERAL MOTORS CORP.

Align the tabs on the switch with the slots in the floor console.

Fig 2: Pressing Traction Control Switch

GM901526

Courtesy of GENERAL MOTORS CORP.

Press the traction control switch through the opening in the floor console.

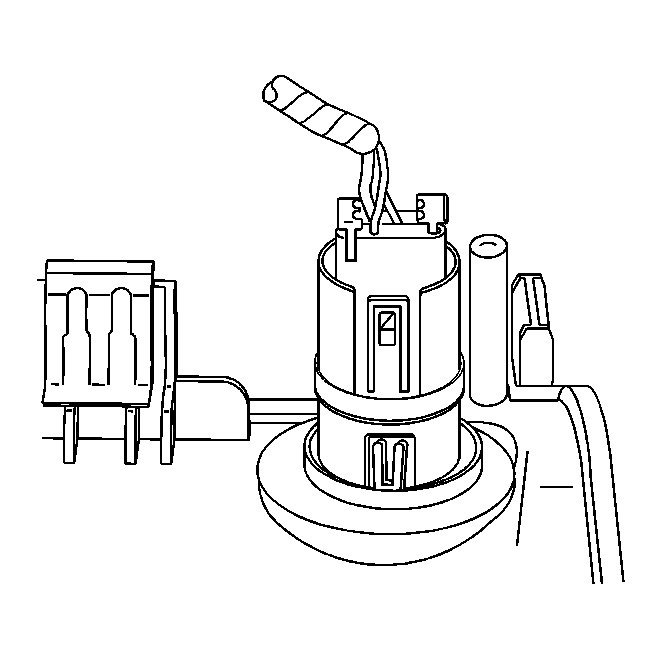

Fig 3: View Of Electrical Connector

GM902859

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Install the floor console. Refer to Front Floor Console Replacement .
