2006 Pontiac Solstice L4-2.4L VIN B
Air Flow Meter/Sensor: Service and Repair
2006 Pontiac Solstice L4-2.4L VIN BSECTION Service and Repair
MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT
REMOVAL PROCEDURE

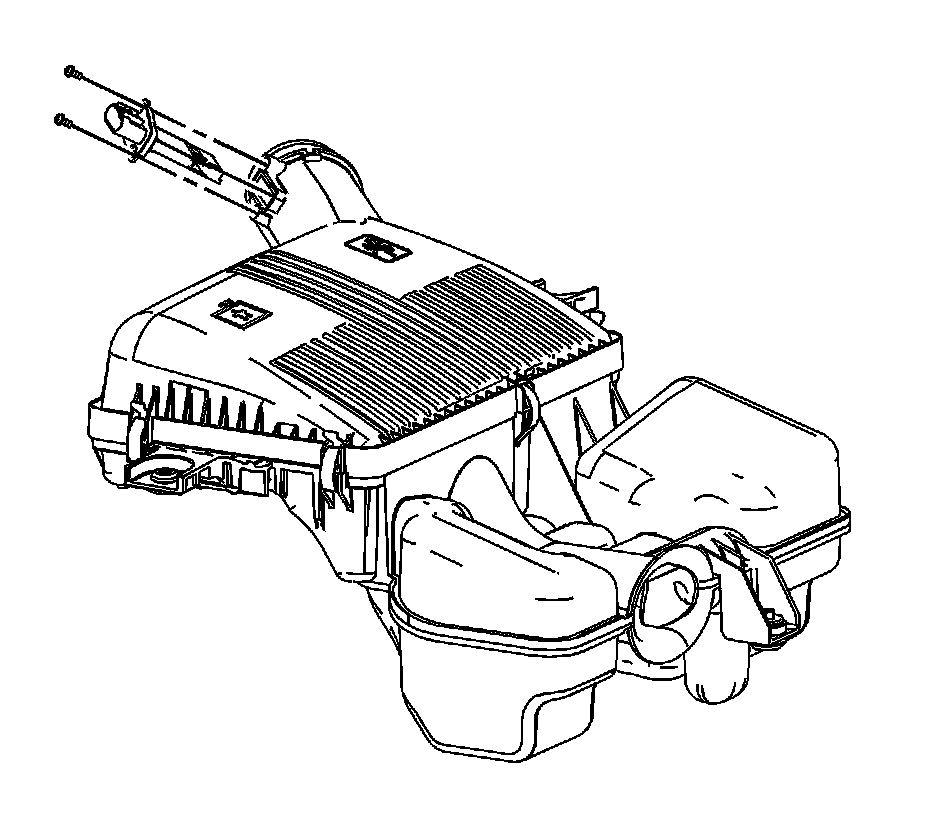

1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.
2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.
INSTALLATION PROCEDURE
1. Install the MAF/IAT sensor.
NOTE: Refer to Fastener Notice.
2. Install the MAF/IAT sensor screws.
Tighten the screws to 0.6 N.m (5 lb in).
3. Connect the MAF/IAT sensor electrical connector.
