2006 Pontiac Solstice AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Controls Component Views

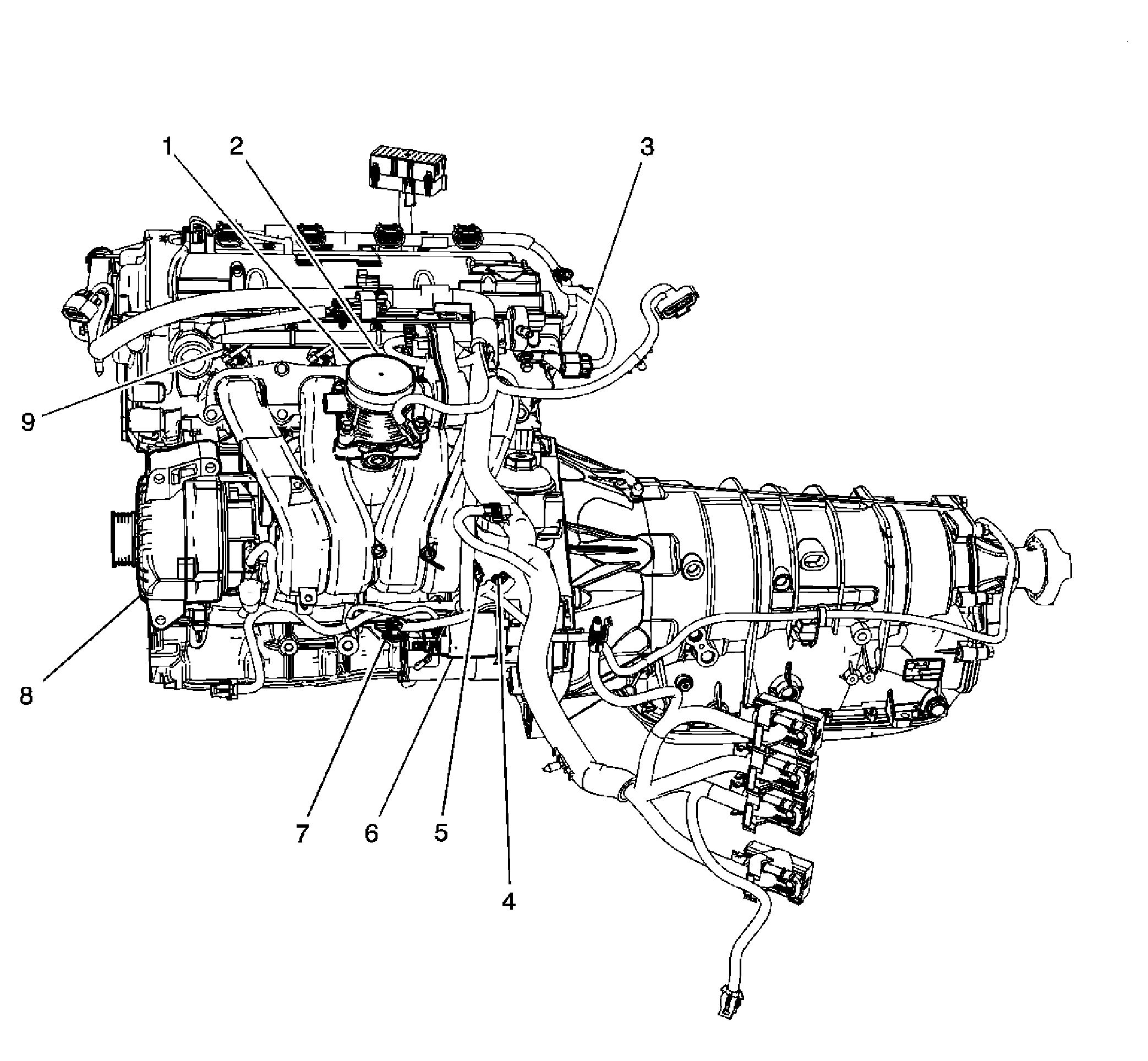

Fig 1: Engine Components (1 of 4)
GM1631737Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body Actuator
2 Manifold Absolute Pressure (MAP) Sensor
3 Camshaft Position (CMP) Sensor 1 (Intake)
4 Engine Harness
5 C175 Engine Harness to Automatic Transmission Harness
6 Crankshaft Position (CKP) Sensor
7 Engine Oil Pressure (EOP) Sensor
8 Starter
9 Knock Sensor Pigtail Connector
10 Generator
11 Fuel Injector Rail

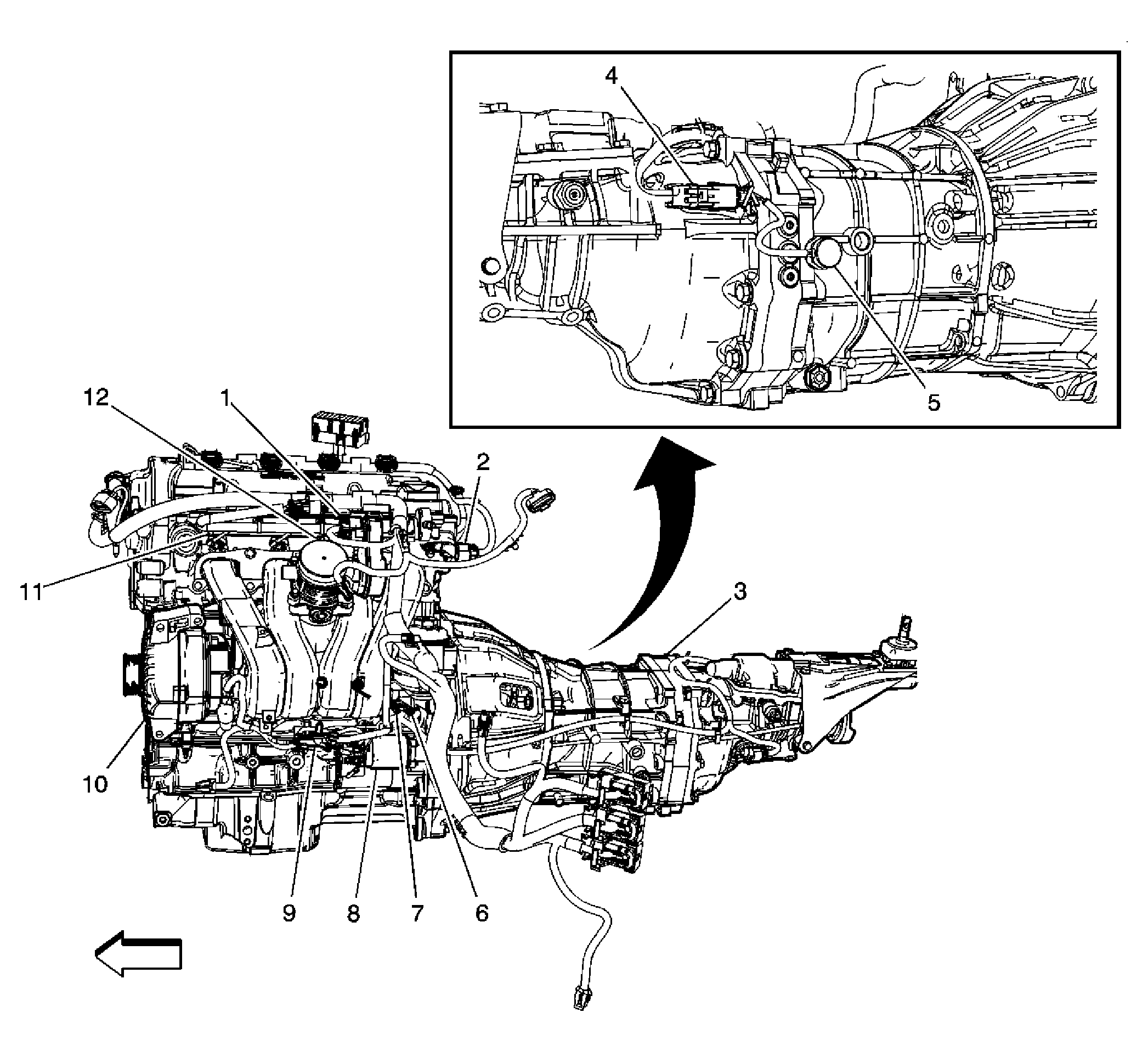

Fig 2: Engine Components (MA5) (2 of 4)
GM1631740Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body Actuator
2 Camshaft Position (CMP) Sensor 1 (Intake)
3 Manual Transmission (MA5)
4 Vehicle Speed Sensor (VSS) (MA5)
5 Backup Lamp Switch (MA5)
6 Crankshaft Position (CKP) Sensor
7 Engine Oil Pressure (EOP) Sensor
8 Starter
9 Knock Sensor Pigtail Connector
10 Generator
11 Fuel Injector Rail
12 Manifold Absolute Pressure (MAP) Sensor

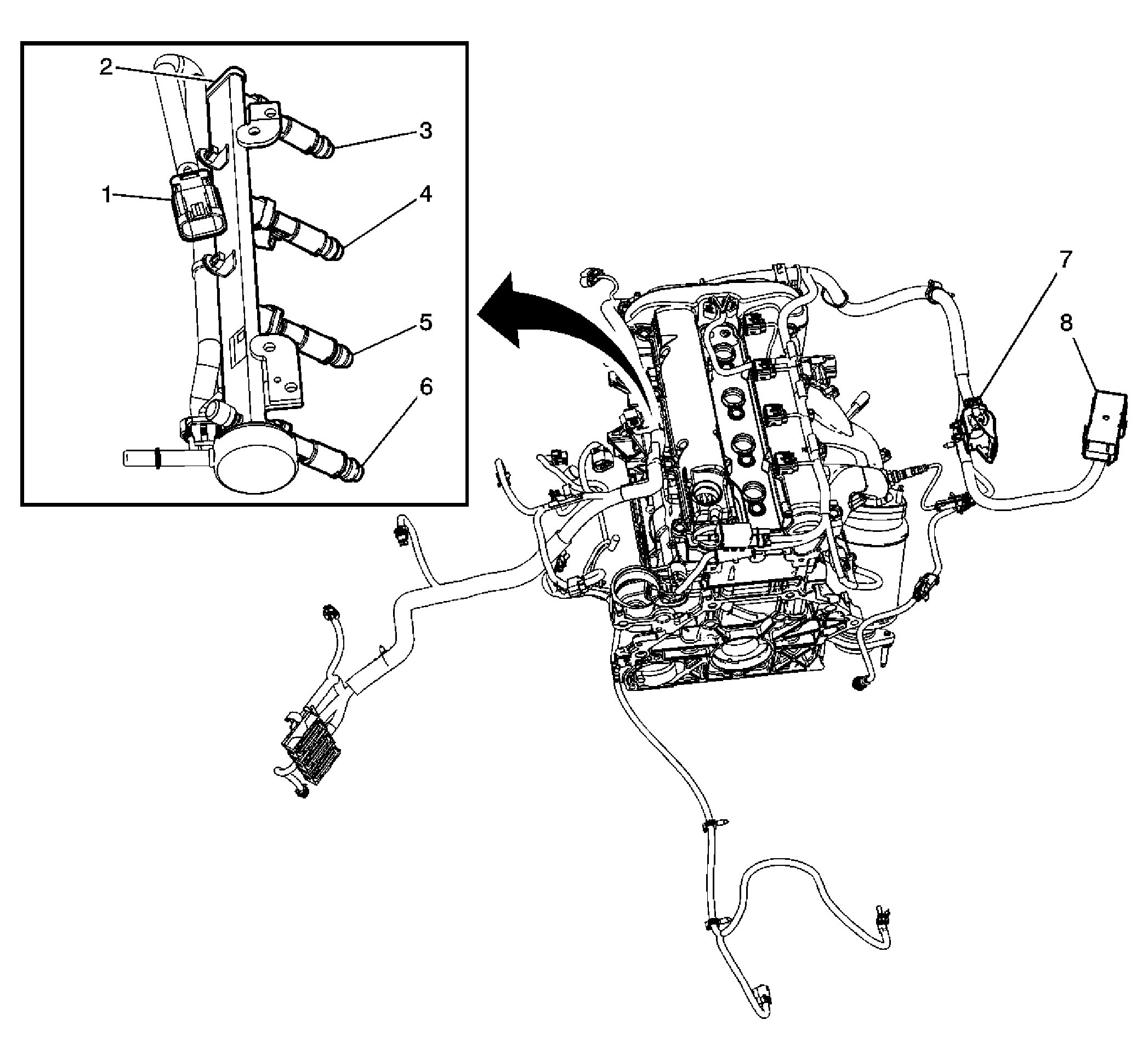

Fig 3: Engine Components (3 of 4)
GM1631744Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C160 Engine Harness to Fuel Injector Harness
2 Fuel Rail
3 Fuel Injector 1
4 Fuel Injector 2
5 Fuel Injector 3
6 Fuel Injector 4
7 C100 Engine Harness to I/P Body Harness
8 Fuse Block-Underhood C1

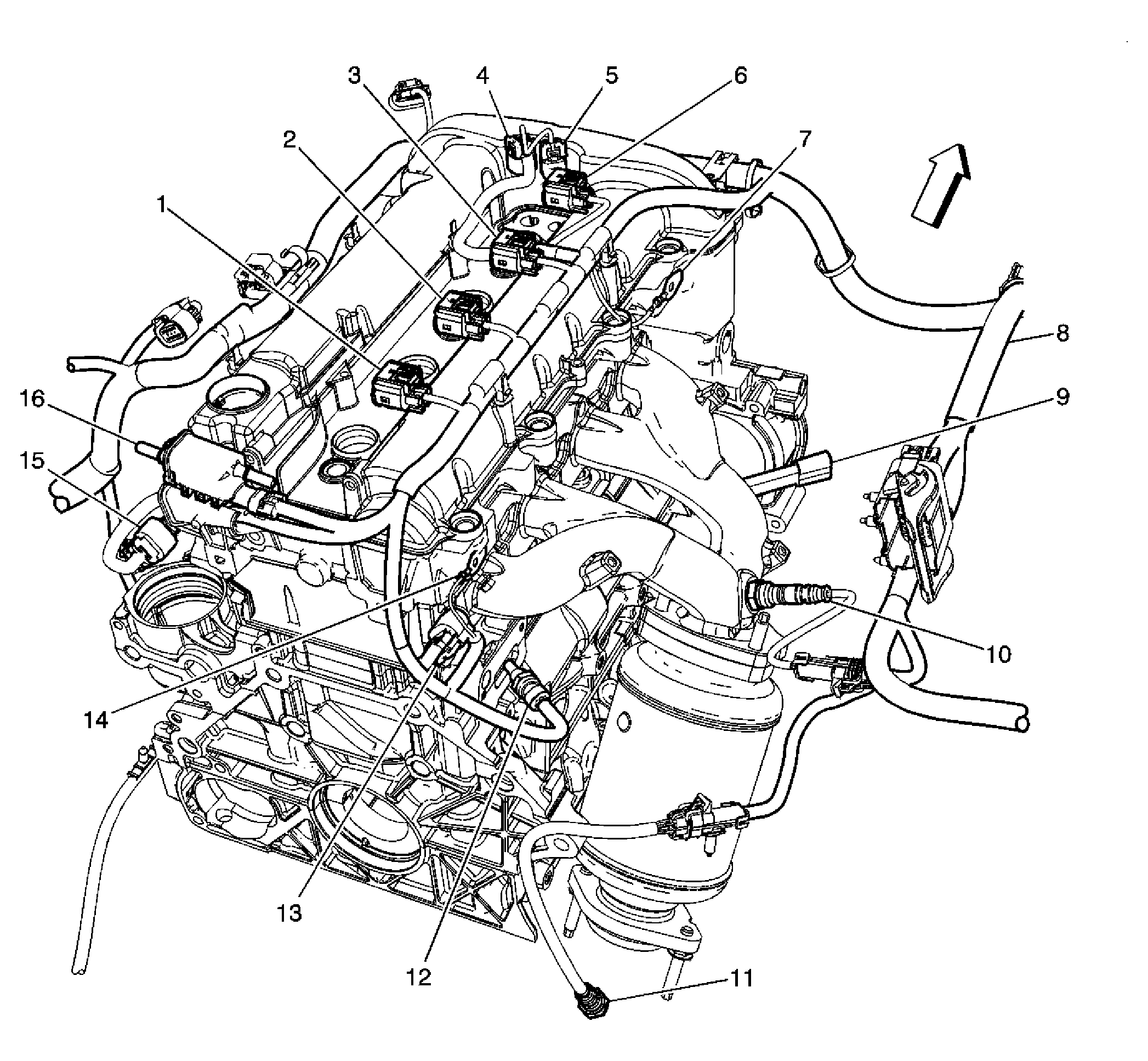

Fig 4: Engine Components (4 of 4)
GM1631745Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 4
2 Ignition Coil 3
3 Ignition Coil 2
4 Camshaft Position (CMP) Actuator Solenoid-Intake
5 Camshaft Position (CMP) Actuator Solenoid-Exhaust
6 Ignition Coil 1
7 G104
8 Engine Harness
9 Engine Block Heater Connector
10 Heated Oxygen Sensor (HO2S) 1
11 Heated Oxygen Sensor (HO2S) 2
12 Engine Coolant Temperature (ECT) Sensor
13 Camshaft Position (CMP) Sensor 2 (Exhaust)
14 G103
15 Camshaft Position (CMP) Sensor 1 (Intake)
16 Evaporative Emission (EVAP) Canister Purge Solenoid

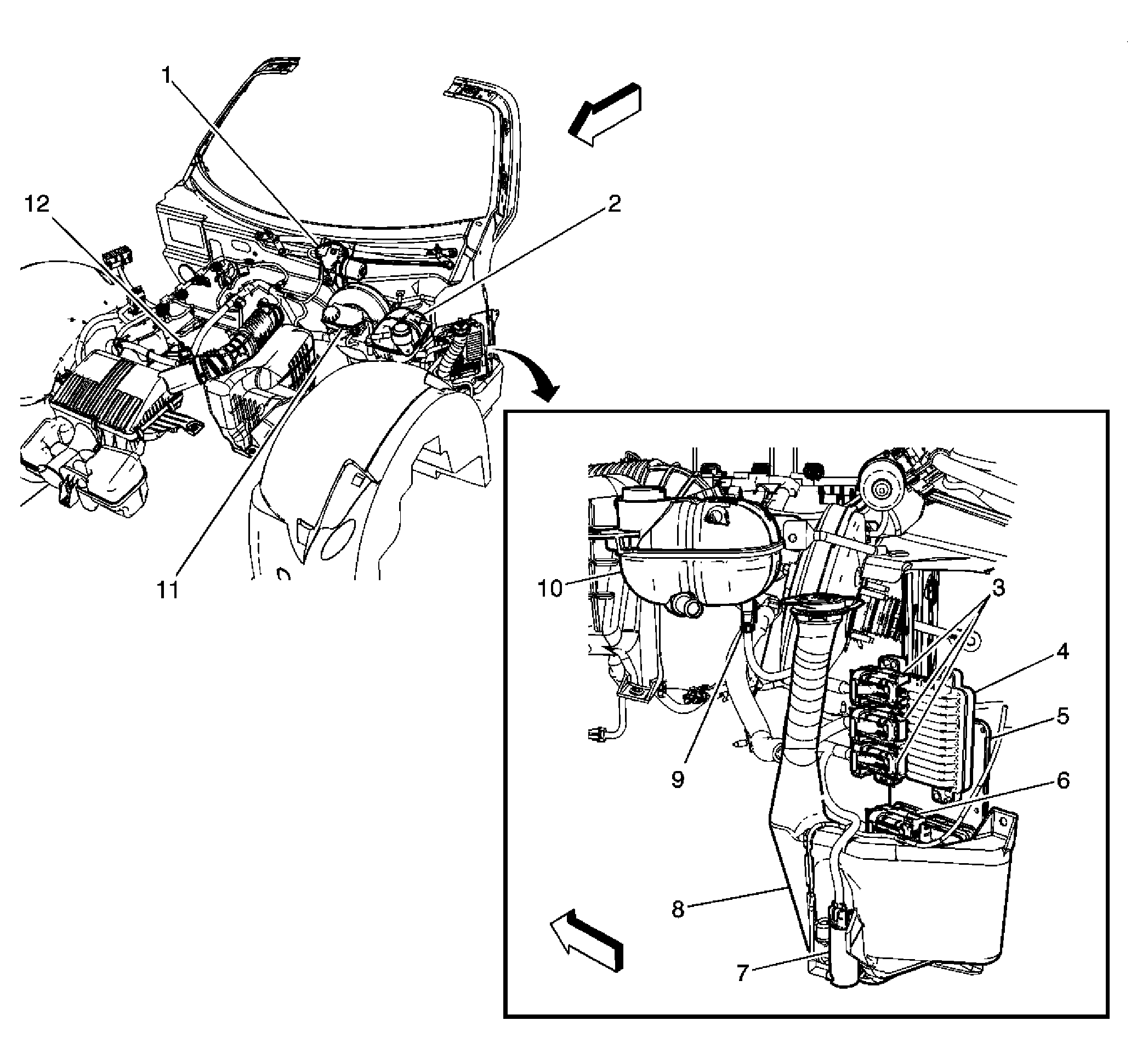

Fig 5: Front Engine Compartment
GM1631732Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor and Module
2 Coolant Surge Tank
3 Engine Control Module (ECM) Connectors
4 Engine Control Module (ECM)
5 Transmission Control Module (TCM)
6 Transmission Control Module (TCM) Connector
7 Windshield Washer Fluid Pump
8 Windshield Washer Fluid Container
9 Engine Coolant Level Switch
10 Coolant Surge Tank

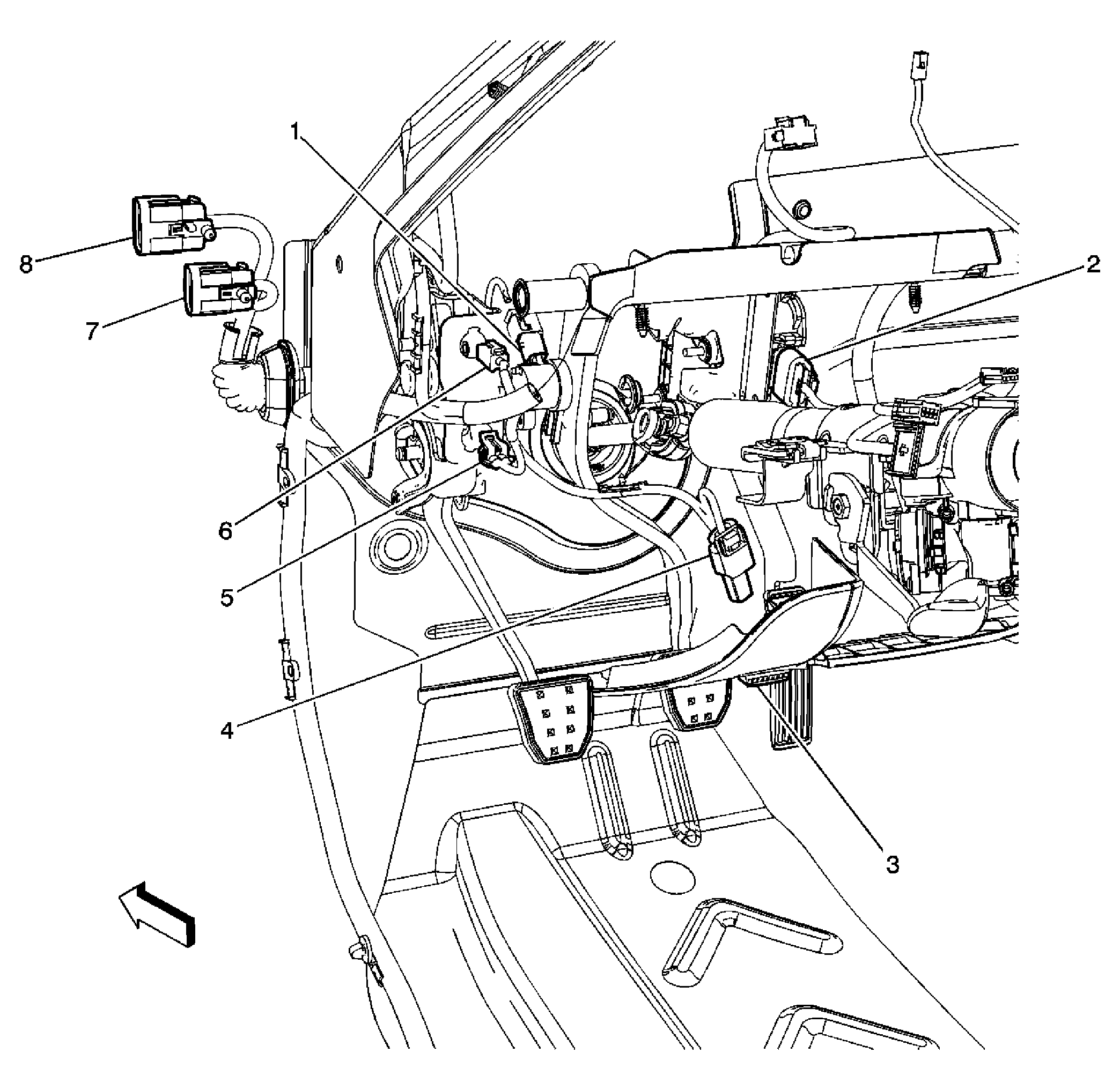

Fig 6: Left Side of I/P
GM1631645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pedal Position Sensor
2 Accelerator Pedal Position (APP) Sensor
3 Data Link Connector (DLC)
4 Data Link Connector (DLC) Resistor
5 Clutch Pedal Position (CPP) Switch
6 Clutch Start Switch
7 C201 Driver Door Harness to I/P Body Harness
8 C202 Driver Door Harness to I/P Body Harness

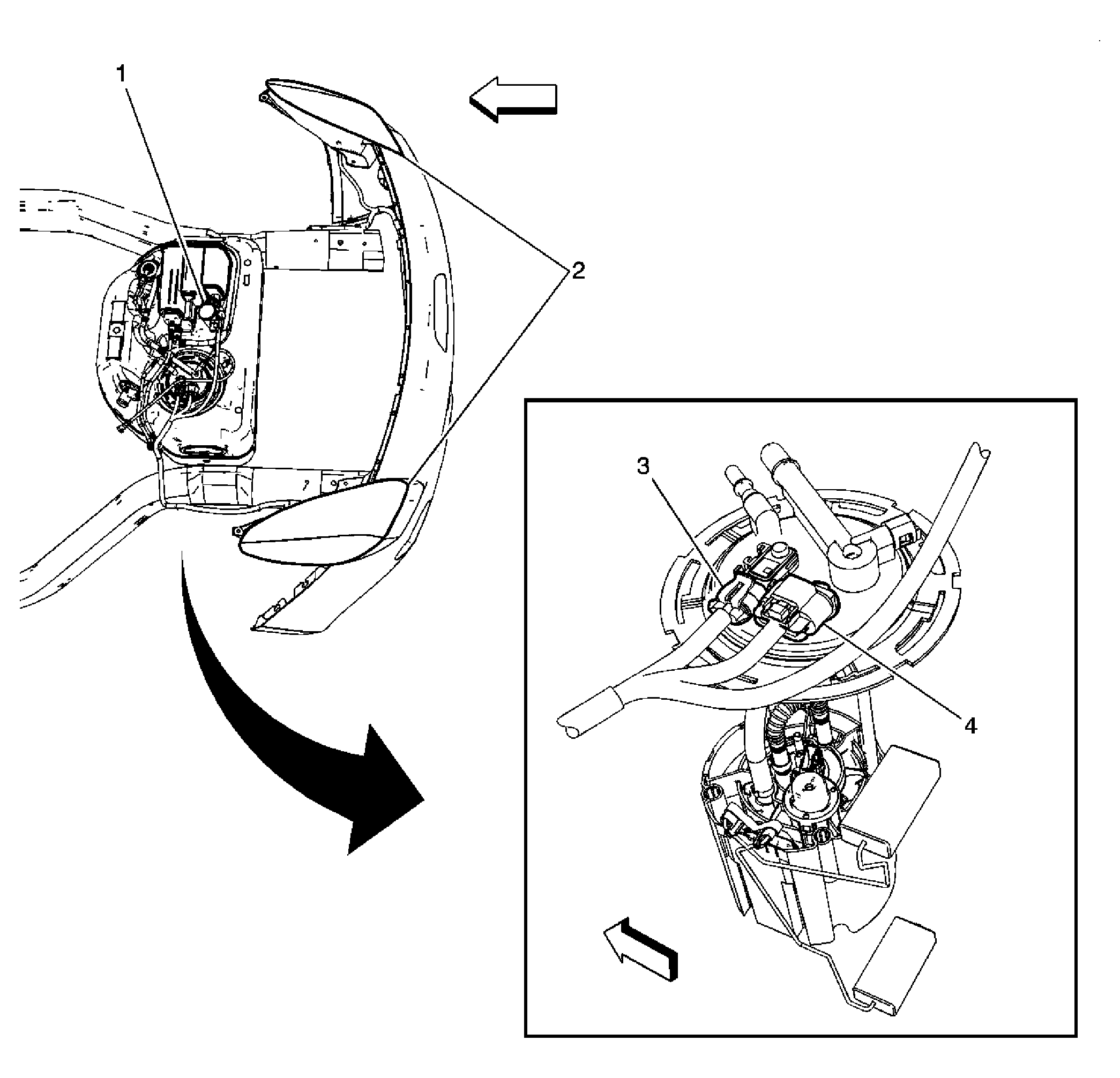

Fig 7: Fuel Tank Components
GM1631580Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Vent Solenoid
2 Rear Tail Lamps
3 Fuel Tank Pressure (FTP) Sensor Connector
4 Fuel Pump and Sender Assembly Connector
