2006 Pontiac Solstice AutomaticFACTORY OEM SERVICE PROCEDURE

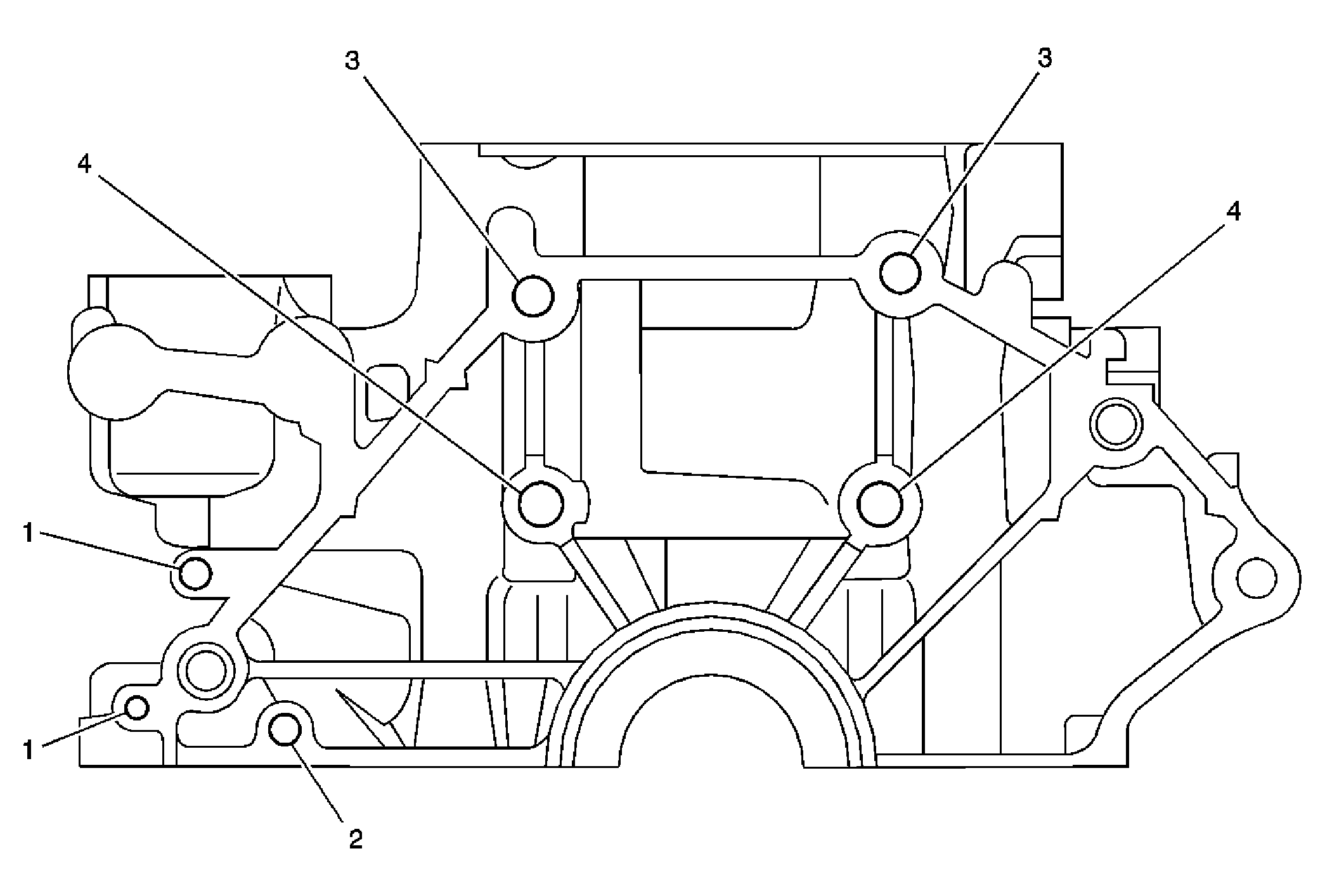

Engine Block - Back View
Engine Block - Back View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 18 | 0.709 | THRU | |
| 2 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 29 | 1.161 | THRU | |
| 3 | M12 x 1.75 | 855 | 856 | 857 | 858 | 859 | 39 | 1.535 | 33.5 | 1.32 |
| 4 | M16 x 1.5 | 860 | 861 | 862 | 863 | 864 | 21 | 0.827 | 15 | 0.59 |
