2006 Pontiac Solstice AutomaticFACTORY OEM SERVICE PROCEDURE

Computer/Integrating Systems Component Views

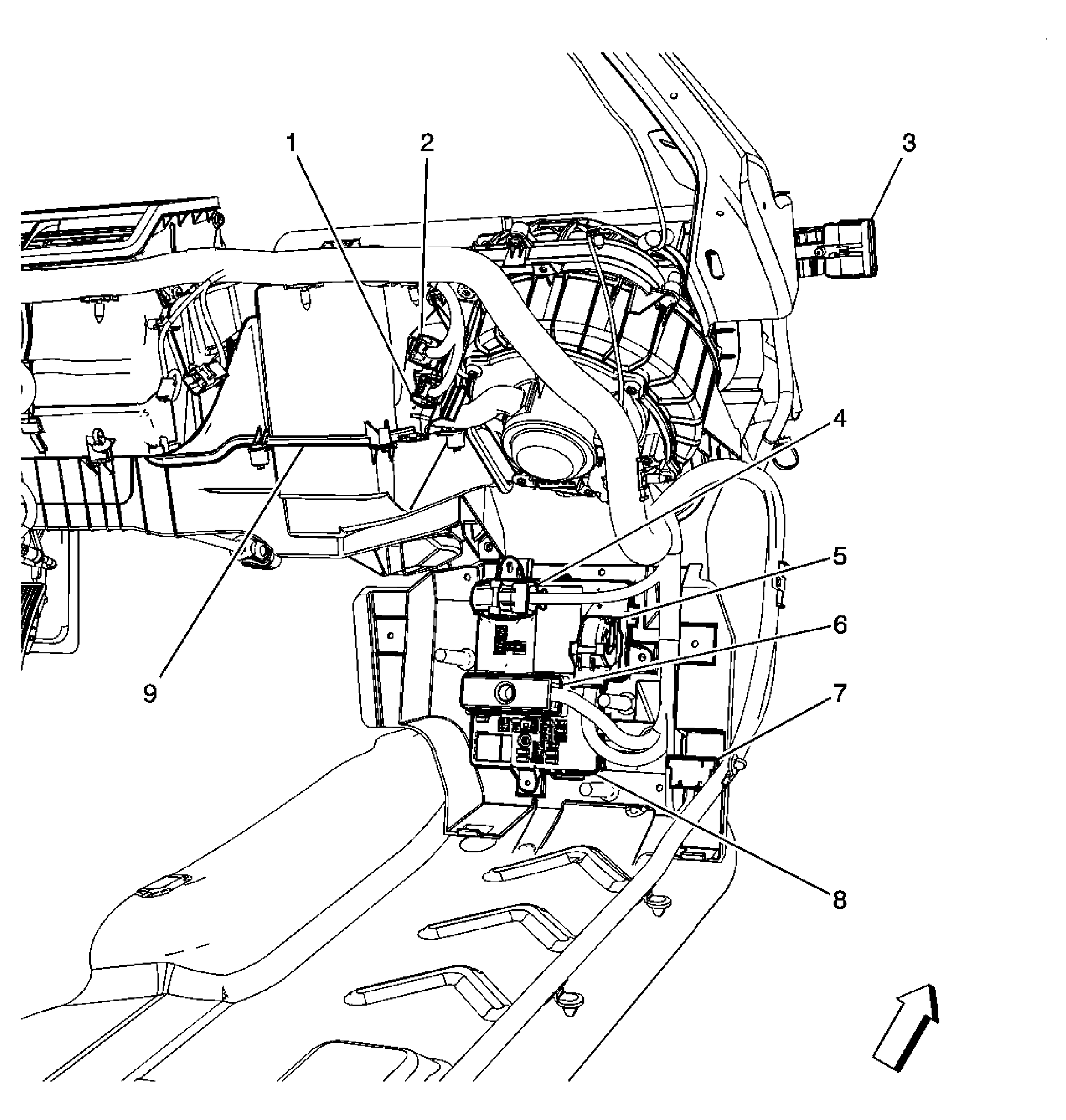

Fig 1: Right Side of I/P
GM1631643Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C116 I/P Harness to HVAC Harness
2 C118 I/P Harness to HVAC Harness
3 C203 Passenger Door Harness to I/P Body Harness
4 Body Control Module (BCM) C1
5 Body Control Module (BCM) C2
6 Body Control Module (BCM) C3
7 Splice Pack SP200
8 Body Control Module (BCM) C4 (Underneath Module)
9 HVAC Module
Fig 2: Left Side of I/P
GM1631645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Pedal Position Sensor
2 Accelerator Pedal Position (APP) Sensor
3 Data Link Connector (DLC)
4 Data Link Connector (DLC) Resistor
5 Clutch Pedal Position (CPP) Switch
6 Clutch Start Switch
7 C201 Driver Door Harness to I/P Body Harness
8 C202 Driver Door Harness to I/P Body Harness
