2006 Pontiac GTO StandardFACTORY OEM SERVICE PROCEDURE
Installation Procedure

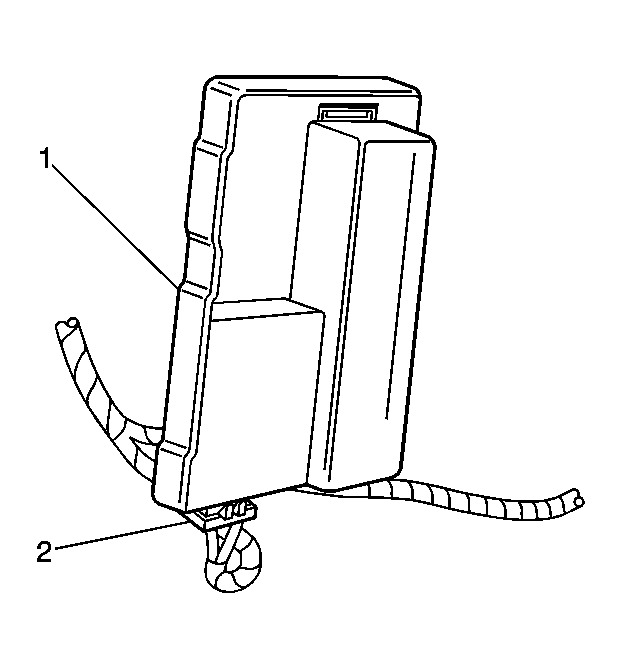

- Position the (PIM) control module (1) to the vehicle.
- Connect the electrical connector (2) to the (PIM) control module (1).
- The (PIM) control module (1) must be security linked to the (BCM) body control module and the (ECM). Refer to Body Control Module (BCM) Programming/RPO Configuration and Service Programming System (SPS) .
