2006 Pontiac GTO StandardFACTORY OEM SERVICE PROCEDURE

Powertrain Interface Module (PIM)

Powertrain Interface Module (PIM)

GM1549189Courtesy of GENERAL MOTORS CORP.

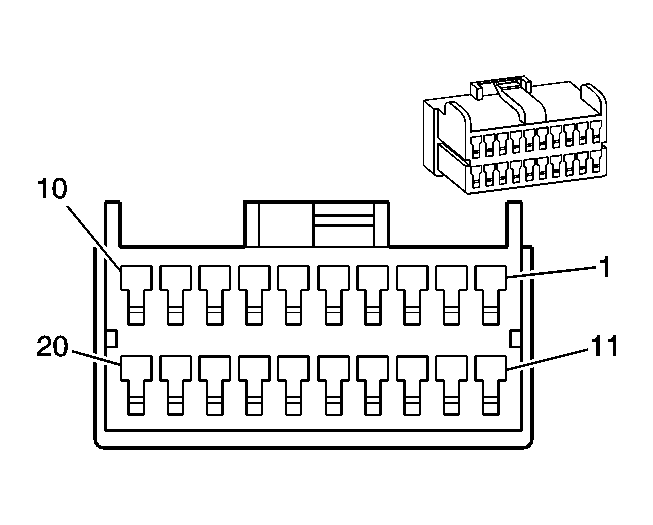

Connector Part Information
  • 7283-7367-30
  • 20-Way F (BK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 RD/WH 1045 RFA Class 2 Serial Data
4 GY/GN 275 Park Neutral Position Switch Park Signal
5-7 - - Not Used
8 GY/BK 87 Cruise Control Resume/Accel Switch Signal
9 BU 84 Cruise Control Set/Coast Switch Signal
10 RD/BK 800 Serial Data Signal
11-12 - - Not Used
13 OG 740 Battery Positive Voltage
14 OG 300 Ignition 3 Voltage
15 BK/GN 151 Ground
16 - - Not Used
17 TN/BK 2500 Serial Data-Can Protocol-High
18 TN/BK 2500 Serial Data-Can Protocol-High
19 TN 2501 Serial Data-Can Protocol-Low
20 TN 2501 Serial Data-Can Protocol-Low
