2006 Pontiac G6 GTP, 2D Coupe, StandardFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

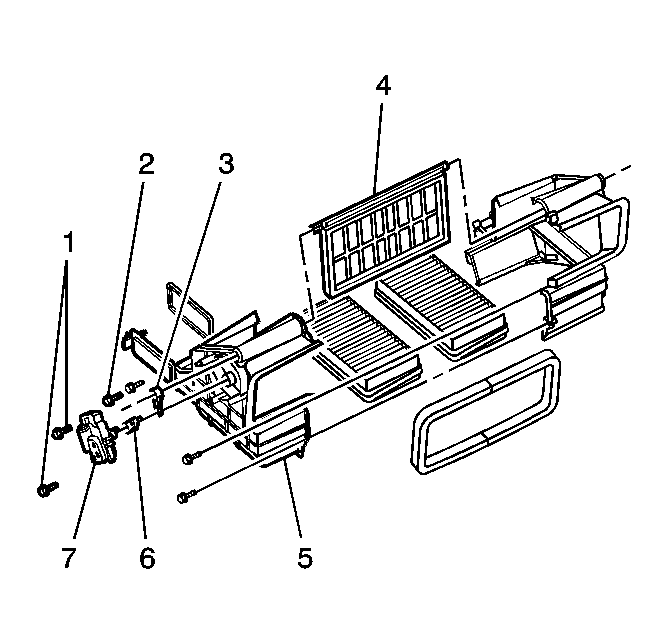

    Fig 1: Identifying Recirculation Door & Components
    GM1548539Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator levers (3, 6), if necessary.
  2. Install the recirculation actuator (7).
    3. NOTE: Refer to Fastener Notice .
  3. Install the recirculation actuator bolts/screws (1).

    Tighten:  Tighten the screws to 1.2 N.m (11 lb in).

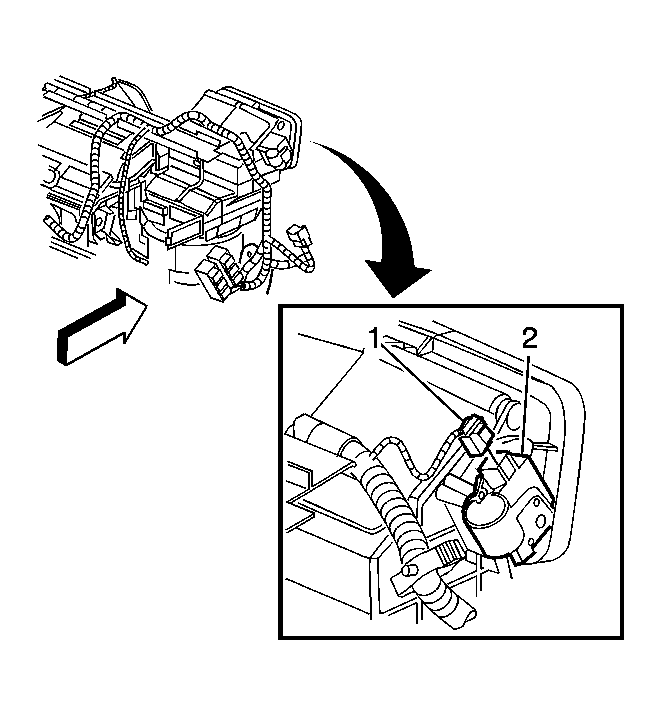

    4. Fig 2: Identifying Recirculation Actuator Electrical Connector
    GM1548559Courtesy of GENERAL MOTORS CORP.
  4. Connect the recirculation actuator electrical connector (1).
  5. Install the upper I/P trim pad.
  6. Re-calibrate the actuators. Refer to Actuators Recalibration .
