Installation Procedure

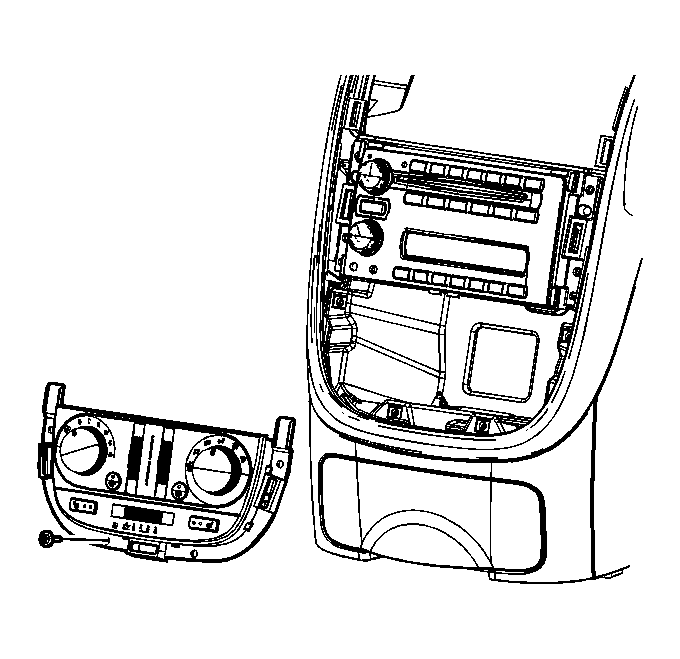

- Connect the HVAC control module electrical connectors.
- Install the HVAC control module into the I/P opening.
- Install the HVAC control module bolts/screws.
Tighten: Tighten the bolts/screws to 2.5 N.m (22 lb in).
- Install the I/P accessory trim plate.
- Re-calibrate the actuators. Refer to Actuators Recalibration .
- Refer to Control Module References for programming and setup information.
