2006 Pontiac G6 GTP, 2D Coupe, Standard

Body Control Module (BCM) C2

2006 Pontiac G6 GTP, 2D Coupe, StandardSECTION Body Control Module (BCM) C2

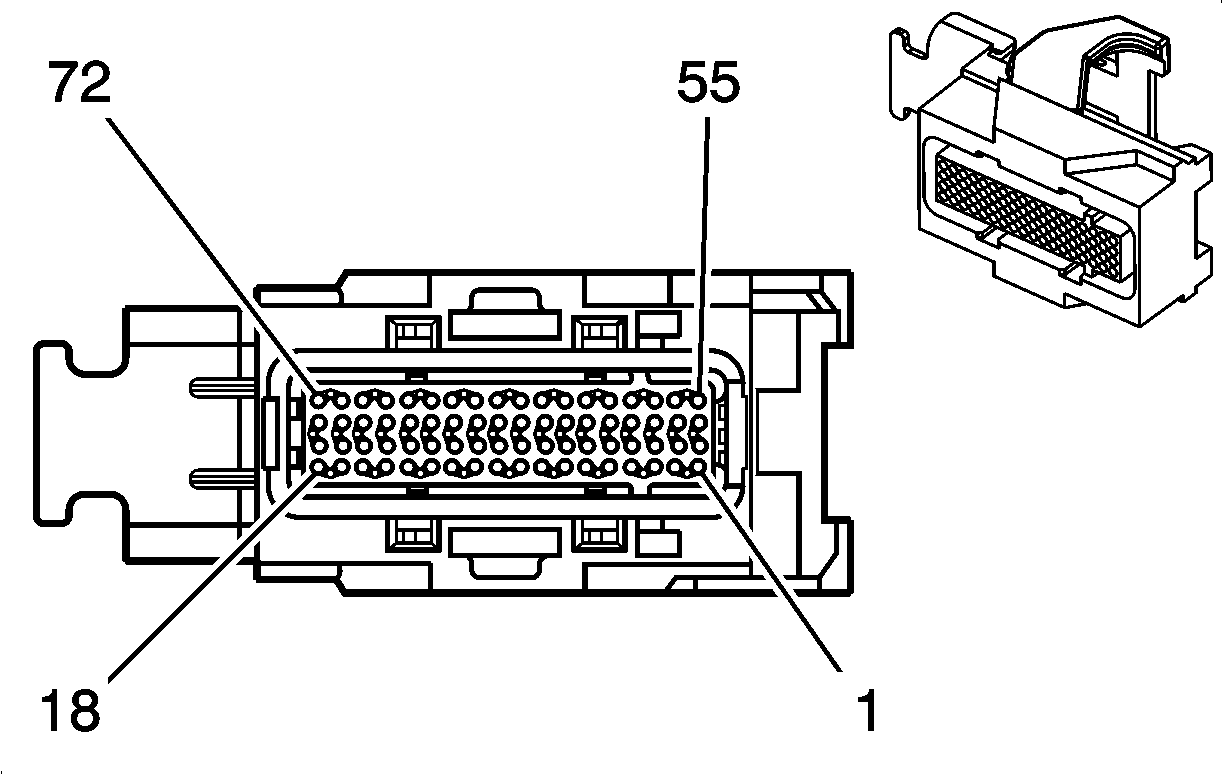

Fig 1: Body Control Module (BCM) C2 Connector View
GM1376254Courtesy of GENERAL MOTORS CORP.
Computer/Integrating Systems Connector End Views

Connector Part Information
  • OEM: 15393121
  • Service: 88987848
  • Description: 72-Way F Micro-Pack 64 Series (GY)

Terminal Part Information
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Body Control Module (BCM) C2

Pin Wire Color Circuit No. Function
1 TN/BK 2500 High Speed GMLAN Serial Data Bus +
2 TN/BK 2500 High Speed GMLAN Serial Data Bus +
3 PK/WH 1970 Headlamp Low Beam Relay Control
4 PU 524 Headlamp Dimmer Switch High Beam Signal
5 BN/WH 301 Park Lamp Switch Signal
6 L-GN 696 Cruise Control Switch Signal (K34)
7-8 - - Not Used
9 WH 111 Hazard Switch Signal
10 - - Not Used
11 D-GN 264 Security Indicator Supply Voltage
12 L-GN 377 Serial Data (AU0)
13 BK/WH 651 Ground
14 TN 28 Horn Relay Control
15 WH 103 Headlamp Switch Headlamps On Signal
16 OG 192 Front Fog Lamp Switch Signal
17 PU/WH 549 Headlamp Switch Headlamps Off Signal
18 WH 5359 5-Volt Reference
19 TN 2501 High Speed GMLAN Serial Data Bus -
20 TN 2501 High Speed GMLAN Serial Data Bus -
21-25 - - Not Used
26 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
27-28 - - Not Used
29 L-GN 5980 Adjustable Pedal Inhibit Signal (JF4)
30 - - Not Used
31 YE 5361 Brake Pedal Position Sensor Signal
32 - - Not Used
33 YE 317 Fog Lamp Relay Control (T96)
34-36 - - Not Used
37 D-GN 5060 Low Speed GMLAN Serial Data
38 D-GN 5060 Low Speed GMLAN Serial Data
39-43 - - Not Used
44 L-GN/BK 1137 DRL Ambient Light Sensor Signal
45-46 - - Not Used
47 YE/BK 1138 DRL Ambient Light Sensor Low Reference
48-50 - - Not Used
51 BN 1356 Flash To Pass Switch Signal
52-54 - - Not Used
55 D-GN 5060 Low Speed GMLAN Serial Data
56 WH 1390 Off/Run/Crank Voltage
57 GY 112 Windshield Wiper Switch Signal 1
58 PU 719 Low Reference
59 BN 5360 Low Reference
60 - - Not Used
61 GY 1884 Cruise Control Switch Signal
62 WH/BK 1073 5-Volt Reference
63 L-BU/BK 590 Driver Sunload Sensor Signal (C68)
64 GY 1548 Passenger Sunload Sensor Signal (C68)
65 - - Not Used
66 YE/BK 1418 Left Rear Turn Signal Switch Signal
67 D-GN/WH 1419 Right Rear Turn Signal Switch Signal
68 L-BU 292 Rear Defog Switch Signal (C60)
69 D-GN/WH 762 A/C Request Signal (C60)
70 - - Not Used
71 PU 5234 Passenger Seat Belt Indicator
72 TN 683 Rear Defog Indicator Supply Voltage (C60)
