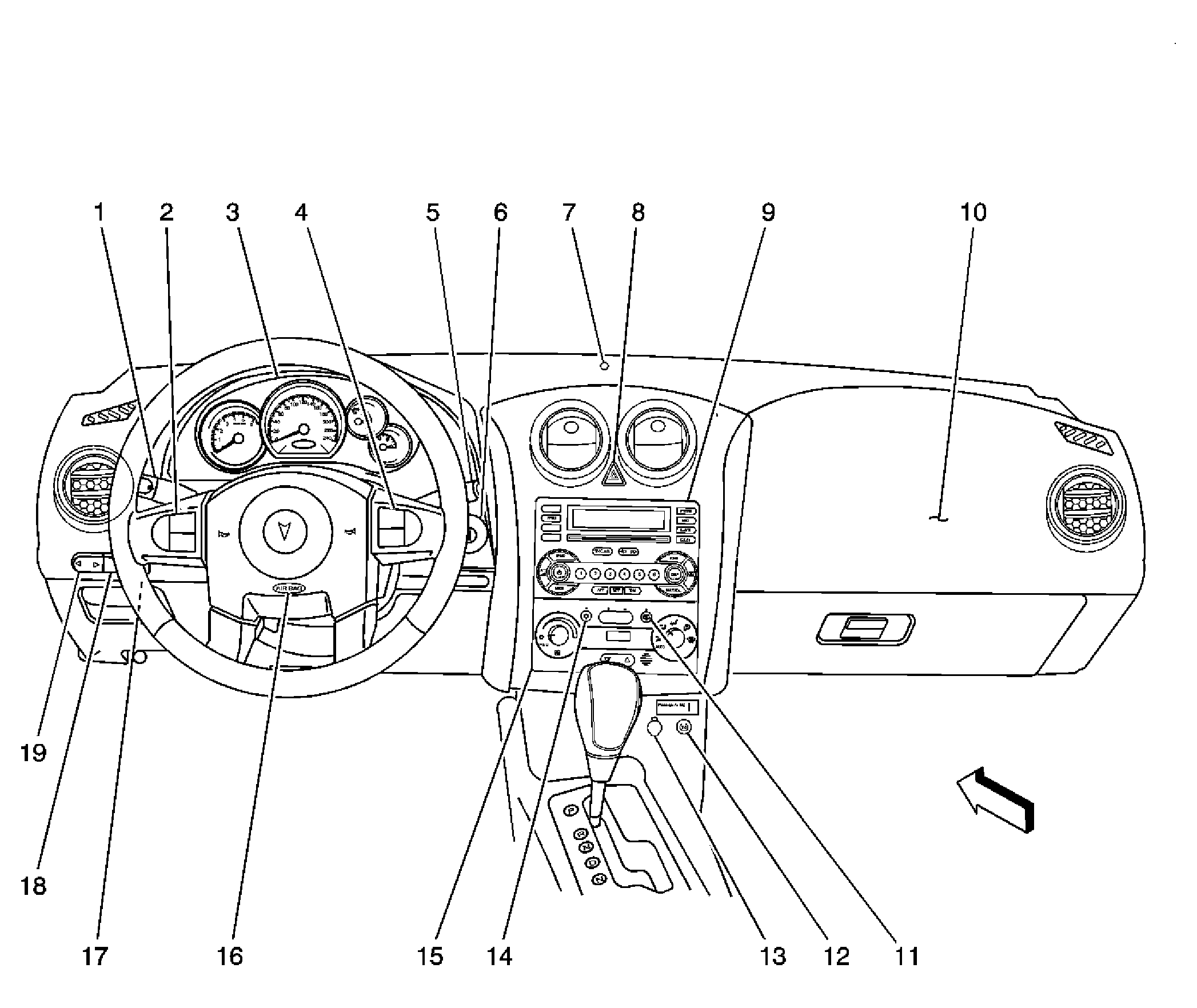

Fig 1: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

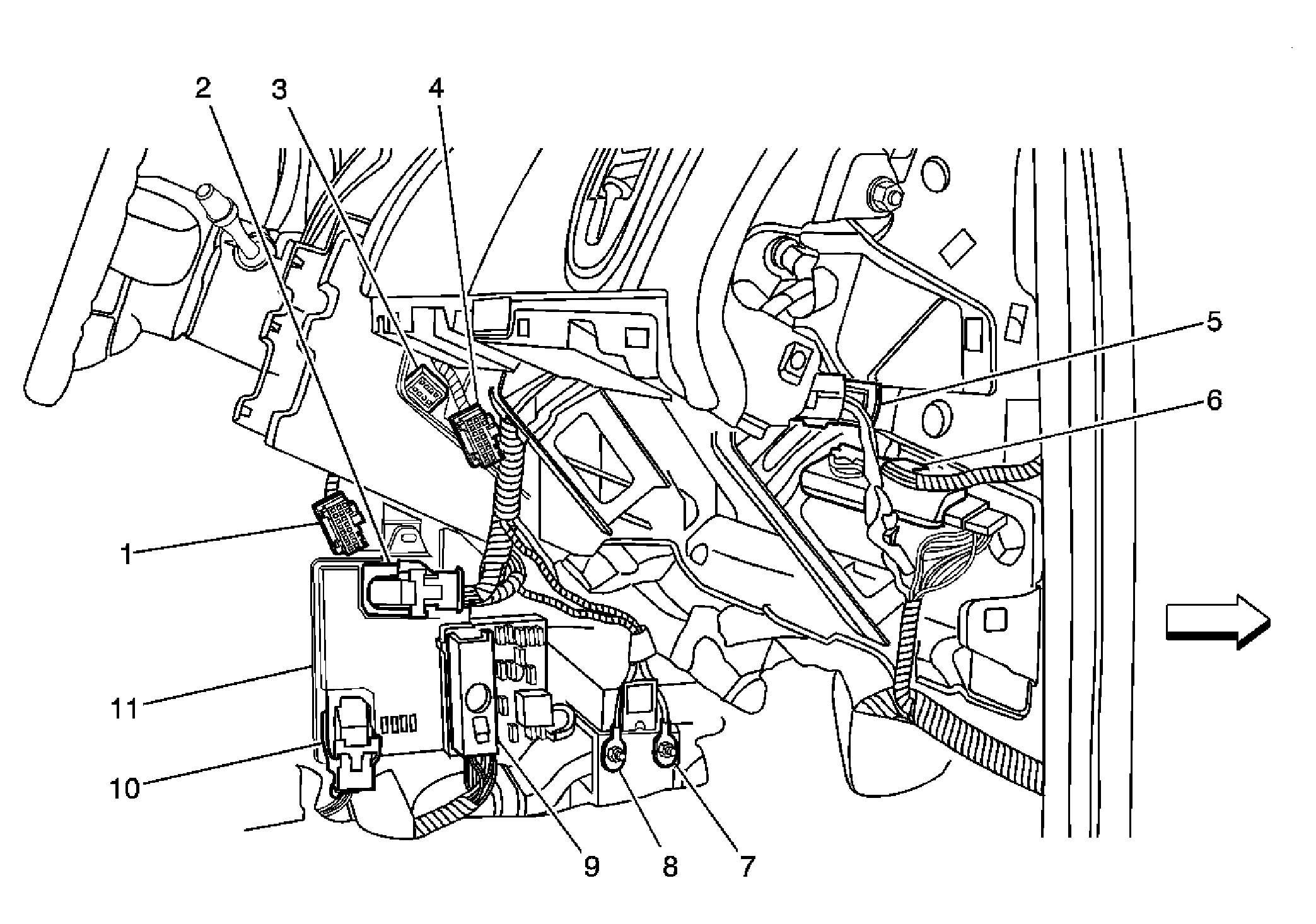

Fig 2: Power and Grounding Component Views - Right Side of the Instrument Panel and Shifter

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Radio, C1
2	Body Control Module (BCM), C2
3	HVAC Control Module, C2
4	HVAC Control Module, C1
5	Inflatable Restraint I/P Module Connector
6	C207
7	G201
8	G203
9	Body Control Module (BCM), C3
10	Body Control Module (BCM), C1
11	Body Control Module (BCM)
