2005 Pontiac Vibe FWD L4-1.8L VIN 8
Timing Cover
2005 Pontiac Vibe FWD L4-1.8L VIN 8SECTION Timing Cover

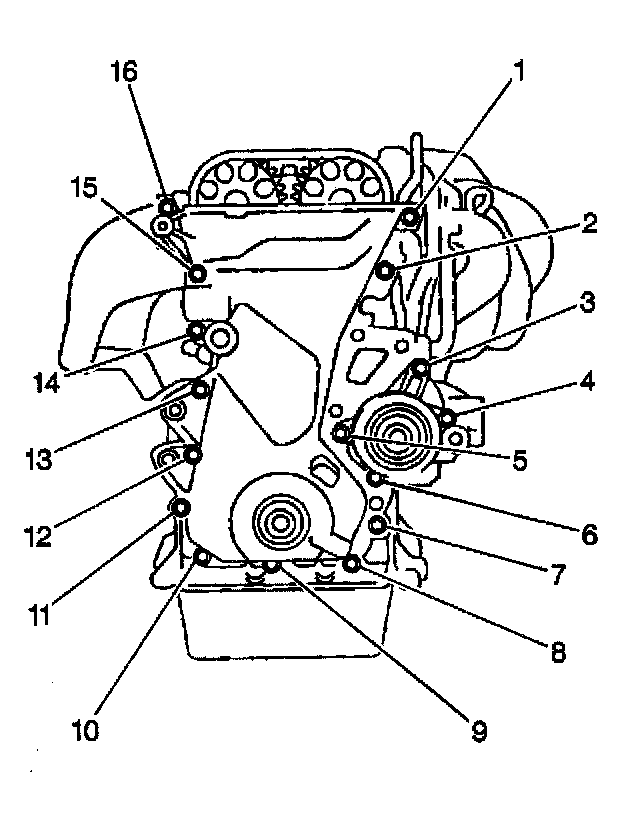

Install the timing chain cover. Use the following fasteners in order to secure the cover:
Fifteen bolts (1-14)
One nut (15)
Tighten the timing chain cover nut and bolts (10 mm (0.394 inch) head) 10 Nm (89 lb in).
Tighten the timing chain cover nut and bolts (12 mm (0.394 inch) head) 18 Nm (14 lb ft)
