2005 Pontiac Vibe FWD L4-1.8L VIN 8FACTORY OEM SERVICE PROCEDURE
Underdrive Planetary and Related

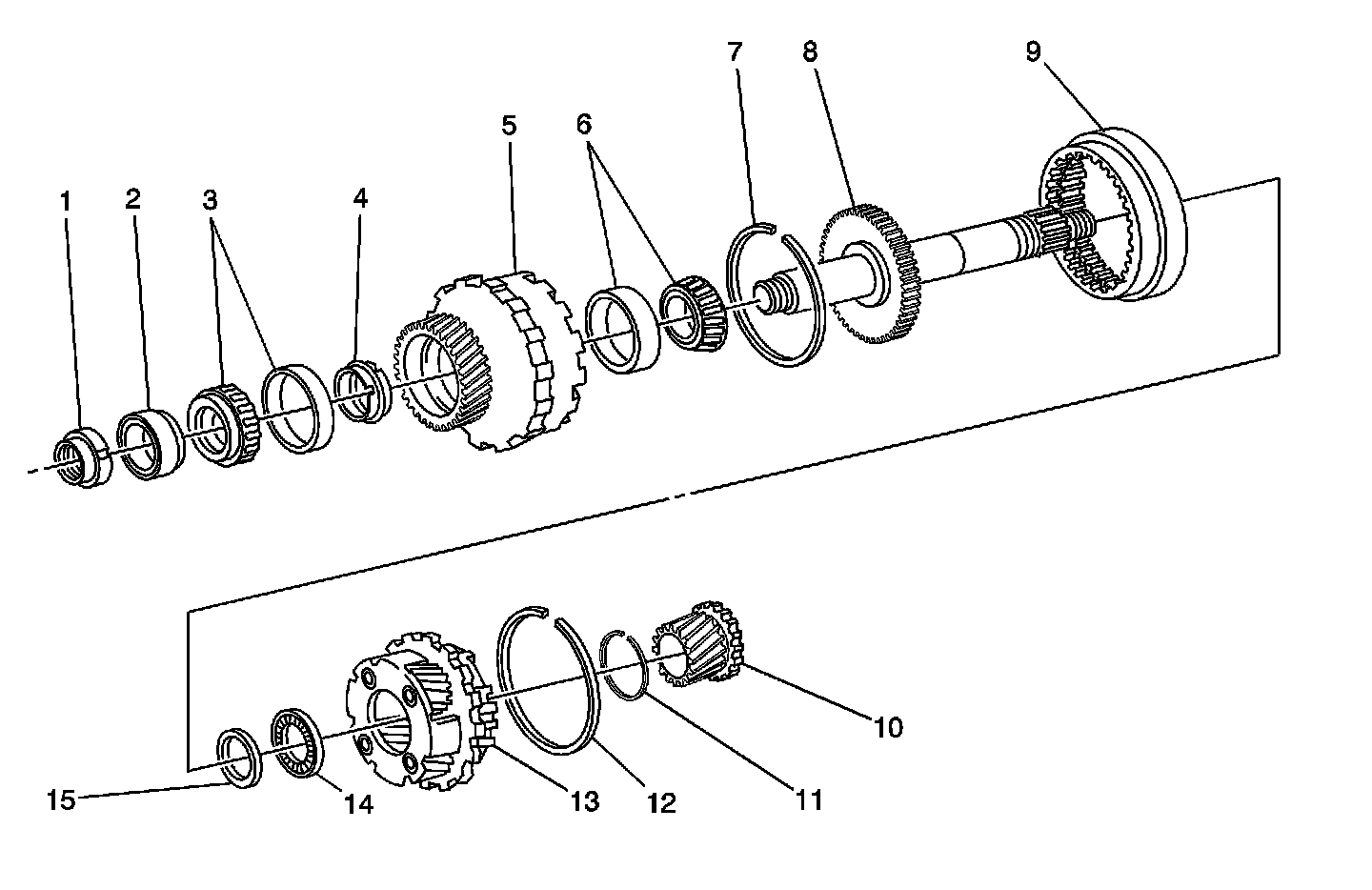

Underdrive Planetary and Related Components
1 - Underdrive Input Shaft Nut
2 - Underdrive Cylinder Roller Bearing
3 - Front Drive Pinion Front Tapered Roller Bearing
4 - Front Differential Drive Pinion Bearing Spacer
5 - Differential Drive Pinion
6 - Front Drive Pinion Rear Tapered Roller Bearing
7 - Snap Ring
8 - Underdrive Input Shaft Sub-Assembly
9 - Underdrive Planetary Ring Gear
10 - Underdrive Planetary Sun Gear Sub-Assembly
11 - Snap Ring
12 - Snap Ring
13 - Underdrive Planetary Gear Assembly
14 - Underdrive Input Shaft Roller Bearing
15 - Underdrive Input Shaft Thrust Bearing Race
1 - Underdrive Input Shaft Nut
2 - Underdrive Cylinder Roller Bearing
3 - Front Drive Pinion Front Tapered Roller Bearing
4 - Front Differential Drive Pinion Bearing Spacer
5 - Differential Drive Pinion
6 - Front Drive Pinion Rear Tapered Roller Bearing
7 - Snap Ring
8 - Underdrive Input Shaft Sub-Assembly
9 - Underdrive Planetary Ring Gear
10 - Underdrive Planetary Sun Gear Sub-Assembly
11 - Snap Ring
12 - Snap Ring
13 - Underdrive Planetary Gear Assembly
14 - Underdrive Input Shaft Roller Bearing
15 - Underdrive Input Shaft Thrust Bearing Race
