2005 Pontiac Vibe FWD L4-1.8L VIN 8FACTORY OEM SERVICE PROCEDURE
Forward Clutch and Related

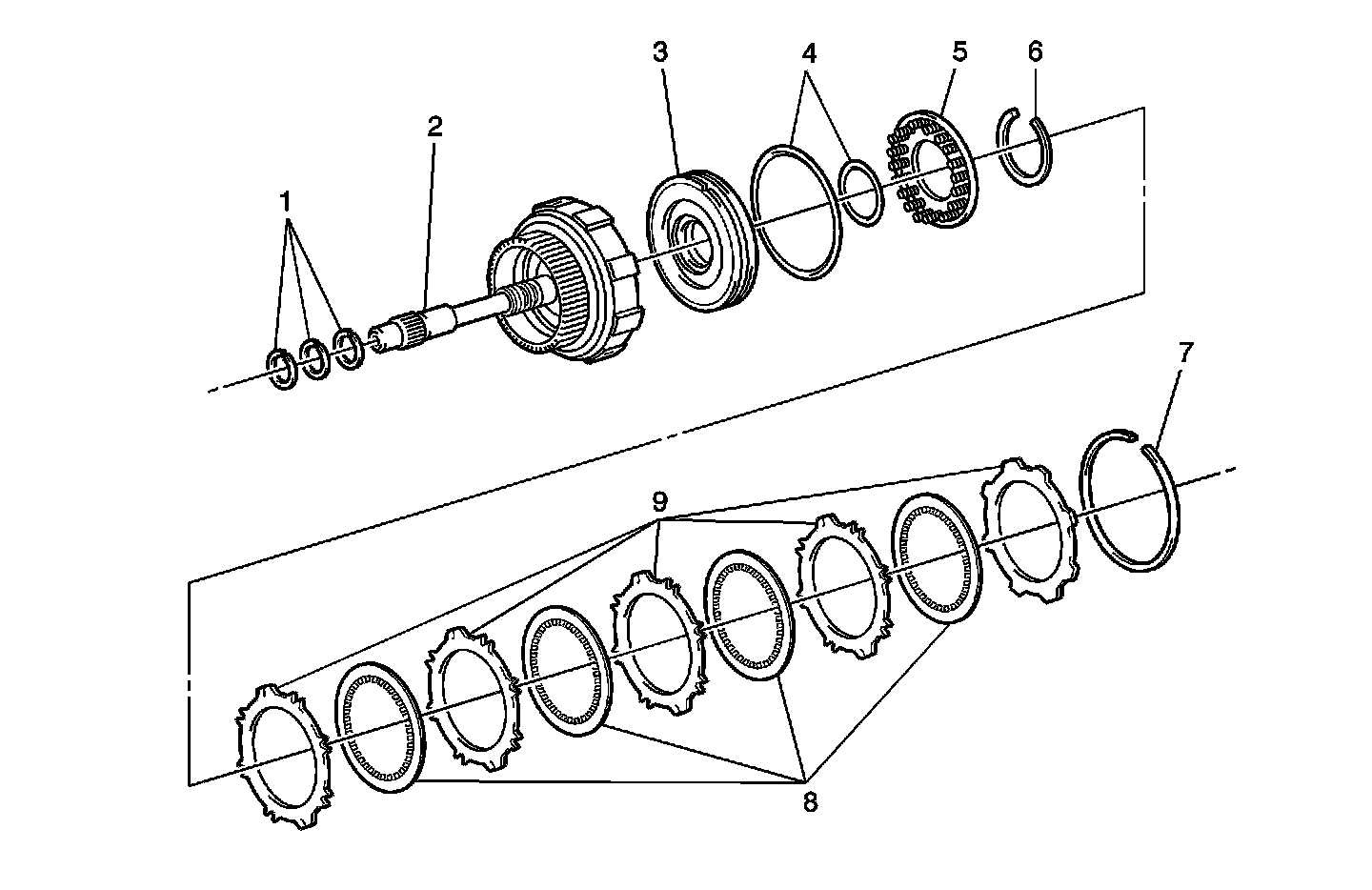

Forward Clutch and Related Components
1 - Input Shaft Oil Seal Rings
2 - Input Shaft Sub-Assembly
3 - Forward Clutch Piston Sub-Assembly
4 - Forward Clutch Return Spring Sub-Assembly
5 - Forward Clutch Return Spring Sub-Assembly
6 - Snap Ring
7 - Snap Ring
8 - Discs
9 - Plates
1 - Input Shaft Oil Seal Rings
2 - Input Shaft Sub-Assembly
3 - Forward Clutch Piston Sub-Assembly
4 - Forward Clutch Return Spring Sub-Assembly
5 - Forward Clutch Return Spring Sub-Assembly
6 - Snap Ring
7 - Snap Ring
8 - Discs
9 - Plates
