2005 Pontiac Sunfire StandardFACTORY OEM SERVICE PROCEDURE

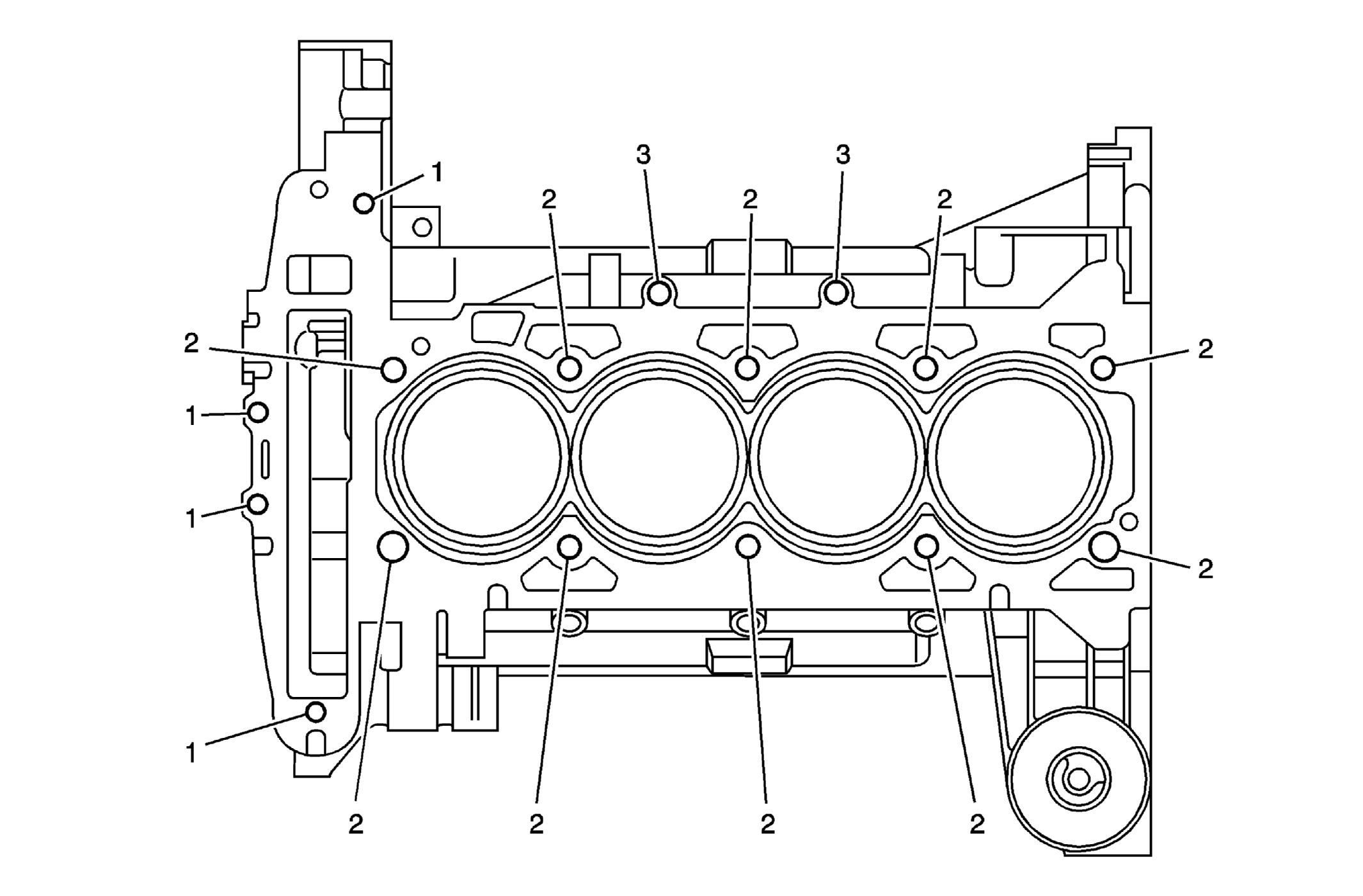

Engine Block - Top View
Engine Block - Top View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 23.5 | 0.925 | 18.5 | 0.73 |
| 2 | M11 x 1.5 | 507 | 504 | N/A | 505 | 506 | 113.3 | 4.461 | 107.3 | 4.22 |
| 3 | M12 x 1.75 | 865 | 856 | 857 | 858 | 859 | 13.5 | 0.531 | 12.5 | 0.49 |
