2005 Pontiac Grand Prix V6-3.8L SC VIN 4FACTORY OEM SERVICE PROCEDURE

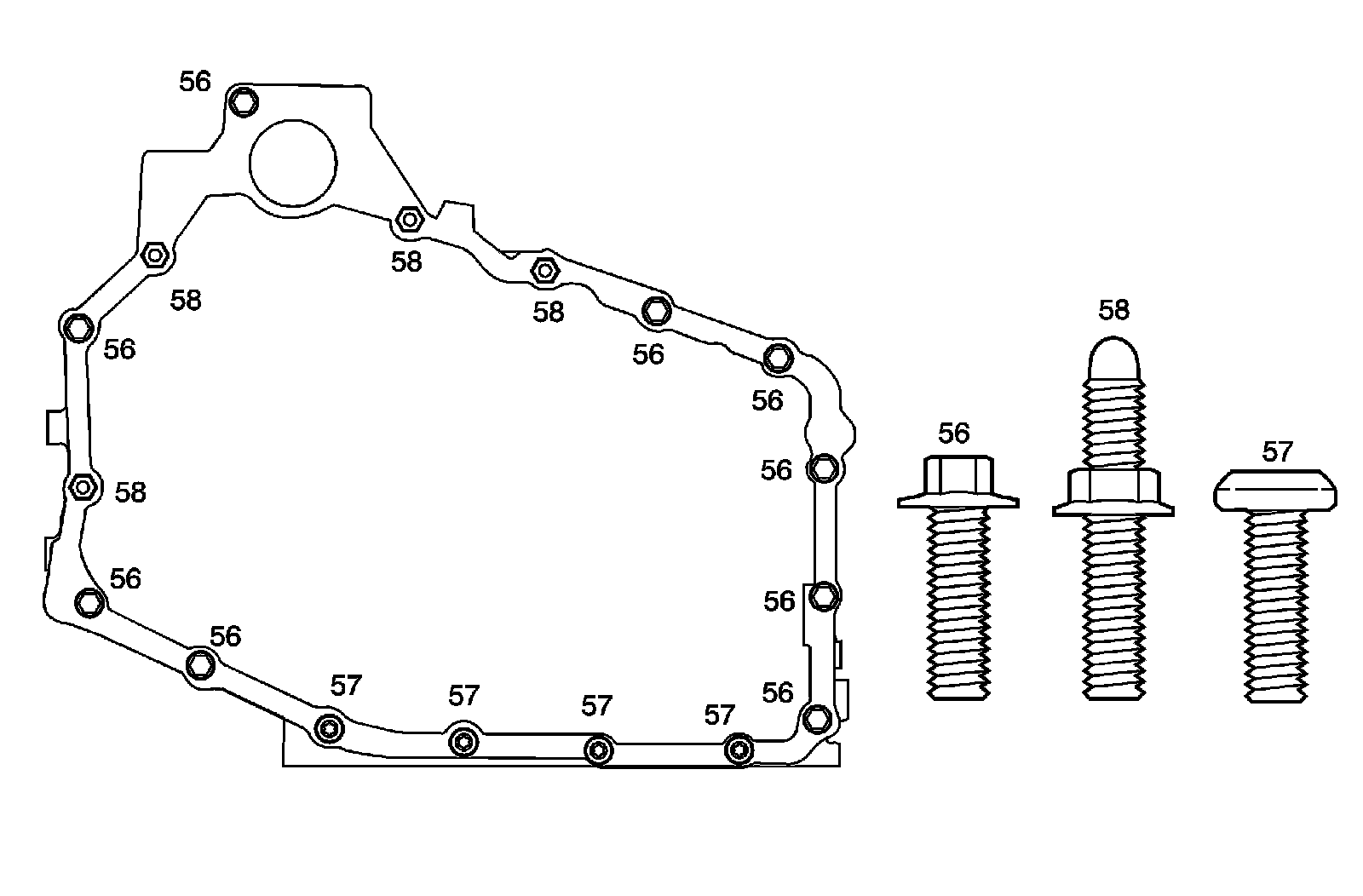

Case Side Cover Bolts
Case Side Cover Bolts
56 - Side Cover Bolt/Screw M8 X 1.25 X 25.0 (9)
57 - Side Cover Bolt/Screw M8 X 1.25 X 21.0 (4)
58 - Side Cover Bolt/Screw M8 X 1.25 X 24.0 (4)
Case Side Cover Bolts:
56 - Side Cover Bolt/Screw M8 X 1.25 X 25.0 (9)
57 - Side Cover Bolt/Screw M8 X 1.25 X 21.0 (4)
58 - Side Cover Bolt/Screw M8 X 1.25 X 24.0 (4)
