2005 Pontiac Grand Prix GXPFACTORY OEM SERVICE PROCEDURE
Engine Controls Connector End Views

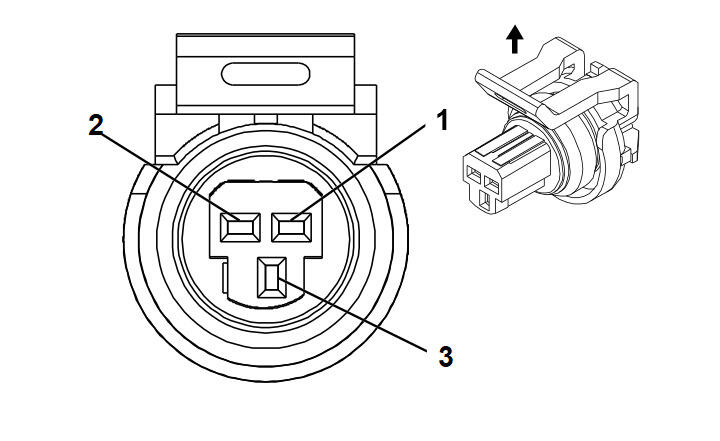

Brake Booster Vacuum Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 6030 | Brake Booster Vacuum Signal |
| 2 | YE/BK | 6032 | Low Reference |
| 3 | GY | 6031 | 5-Volt Reference |
Crankshaft Position (CKP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 1869 | CKP Sensor Signal |
| B | YE | 1868 | Low Reference |
| C | L-GN | 1867 | 12-Volt Reference |
Knock Sensor (KS) 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 1876 | Knock Sensor 2 Signal |
| B | GY | 2303 | Low Reference |
Fuel Injector 7 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5291 | Ignition 1 Voltage |
| B | RD/BK | 877 | Fuel Injector 7 Control |
Fuel Injector 5 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5291 | Ignition 1 Voltage |
| B | BK/WH | 845 | Fuel Injector 5 Control |
Fuel Injector 3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5291 | Ignition 1 Voltage |
| B | PK/BK | 1746 | Fuel Injector 3 Control |
Fuel Injector 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5291 | Ignition 1 Voltage |
| B | BK | 1744 | Fuel Injector 1 Control |
Fuel Injector 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5292 | Ignition 1 Voltage |
| B | L-GN/BK | 1745 | Fuel Injector 2 Control |
Fuel Injector 4 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5292 | Ignition 1 Voltage |
| B | L-BU/BK | 844 | Fuel Injector 4 Control |
Fuel Injector 6 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5292 | Ignition 1 Voltage |
| B | YE/BK | 846 | Fuel Injector 6 Control |
Fuel Injector 8 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5292 | Ignition 1 Voltage |
| B | D-BU/WH | 878 | Fuel Injector 8 Control |
Heated Oxygen Sensor (HO2S) 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN/WH | 1669 | HO2S Low Signal |
| B | PU/WH | 1668 | HO2S High Signal |
| C | BN | 2391 | HO2S Heater Low Control Sensor 2 |
| D | PK/BK | 5293 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S) 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 1664 | HO2S Low Signal |
| B | PU/WH | 1665 | HO2S High Signal |
| C | BK/WH | 3113 | HO2S Heater Low Control Sensor 1 |
| D | PK/BK | 5293 | Ignition 1 Voltage |
Camshaft Position (CMP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RD | 631 | 12-Volt Reference |
| B | PK/BK | 632 | Low Reference |
| C | BN/WH | 633 | CMP Sensor Signal |
Knock Sensor (KS) 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-BU | 496 | Knock Sensor 1 Signal |
| B | GY | 1716 | Low Reference |
Manifold Absolute Pressure (MAP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | OG/BK | 469 | Low Reference |
| B | L-GN | 432 | MAP Sensor Signal |
| C | GY | 2704 | 5-Volt Reference |
Evaporative Emission (EVAP) Canister Purge Solenoid Valve Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK/BK | 5293 | Ignition 1 Voltage |
| B | D-GN/WH | 428 | EVAP Canister Purge Solenoid Control |
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YE | 492 | MAF Sensor Signal |
| B | PK/BK | 5294 | Ignition 1 Voltage |
| C | BK/WH | 451 | Ground |
| D | TN | 472 | IAT Sensor Signal |
| E | BK | 2760 | Low Reference |
Engine Coolant Temperature (ECT) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 2761 | Low Reference |
| B | YE | 410 | ECT Sensor Signal |
Throttle Actuator Control (TAC) Module Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | D-GN | 485 | TP Sensor 1 Signal |
| B | L-BU/BK | 1688 | 5-Volt Reference B |
| C | BK/WH | 1704 | Low Reference |
| D | PU | 486 | TP Sensor 2 Signal |
| E | YE | 581 | TAC Motor Control 1 |
| F | BN | 582 | TAC Motor Control 2 |
| G | L-BU/BK | 1688 | 5-Volt Reference B |
| H | BK/WH | 1704 | Low Reference |
Engine Oil Pressure (EOP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 2755 | Low Reference |
| 2 | GY | 2705 | 5-Volt Reference |
| 3 | TN/WH | 331 | Oil Pressure Sensor Signal |
Value Lifter Oil Manifold (VLOM) Assembly Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | OG | 5494 | Cylinder Shutoff Solenoid 4 |
| B | GY | 5493 | Cylinder Shutoff Solenoid 3 |
| C | D-BU | 5491 | Cylinder Shutoff Solenoid 1 |
| D | L-GN | 5492 | Cylinder Shutoff Solenoid 2 |
| E | PK/BK | 5294 | Ignition 1 Voltage |
