2005 Pontiac Grand Prix BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure

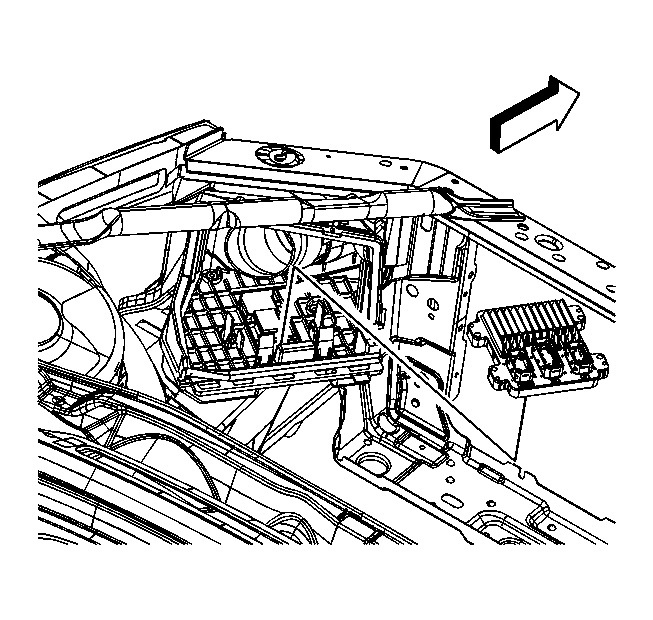

- Install the PCM to the air cleaner lower housing.
- Install the PCM electrical connectors.
- Install the air cleaner. Refer to Air Cleaner Assembly Replacement .
- Install the left front inner fender brace. Refer to Brace Replacement - Front Fender Upper Diagonal .
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (RPOs L26/L32) or Battery Negative Cable Disconnect/Connect Procedure (RPO LS4) .
- The new PCM must be programmed. Refer to Control Module References .
