2005 Pontiac Grand Prix BaseFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the 14-way electrical connector from the ignition control module (ICM).
- Disconnect the spark plug wires from the coil assemblies. Before removing the wires, note the position of the wires.

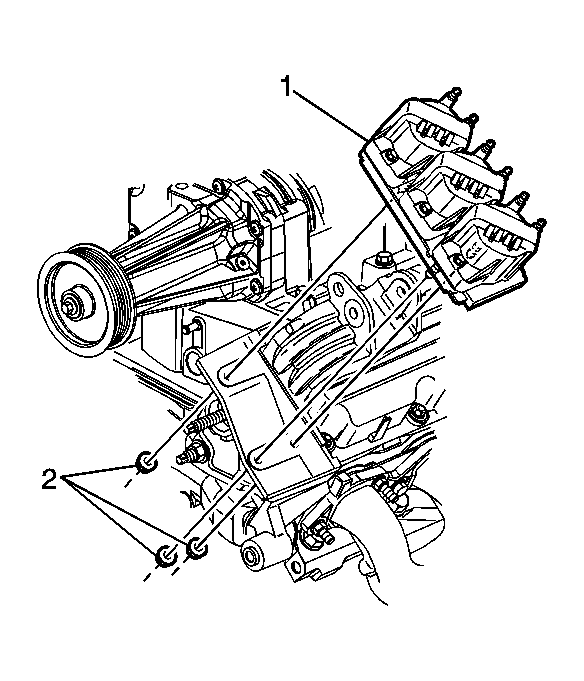

- Remove the ICM nuts (2).
- Remove the ICM (1) from the bracket.
- Remove the ignition coil screws (1).
- Remove the ignition coils (2) from the ICM (3).
