Installation Procedure

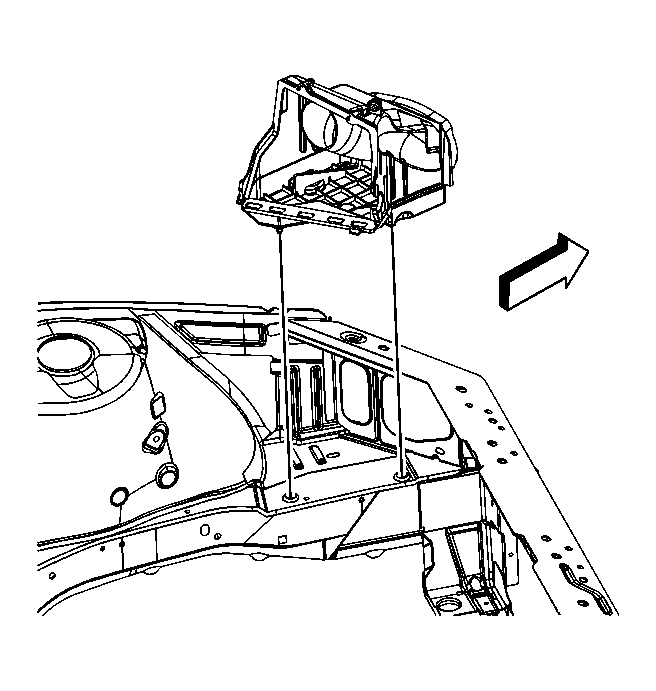

- Install the air cleaner lower housing by firmly pushing the housing down into the 2 rubber grommets.

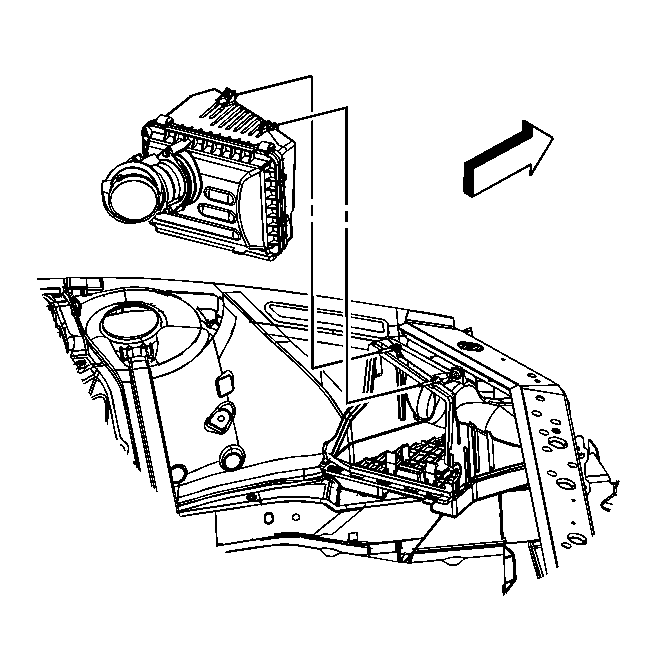

- Install the PCM into the air cleaner lower housing.
- Install the front tabs of the air cleaner upper housing into the slots in the air cleaner lower housing.
- Align the holes in the upper housing to the integral bolts in the lower housing.
- Tighten the air cleaner housing bolts.
Tighten: Tighten the screws to 4 N.m (35 lb in).
- Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
- Install the left inner fender brace. Refer to Brace Replacement - Front Fender Upper Diagonal .
