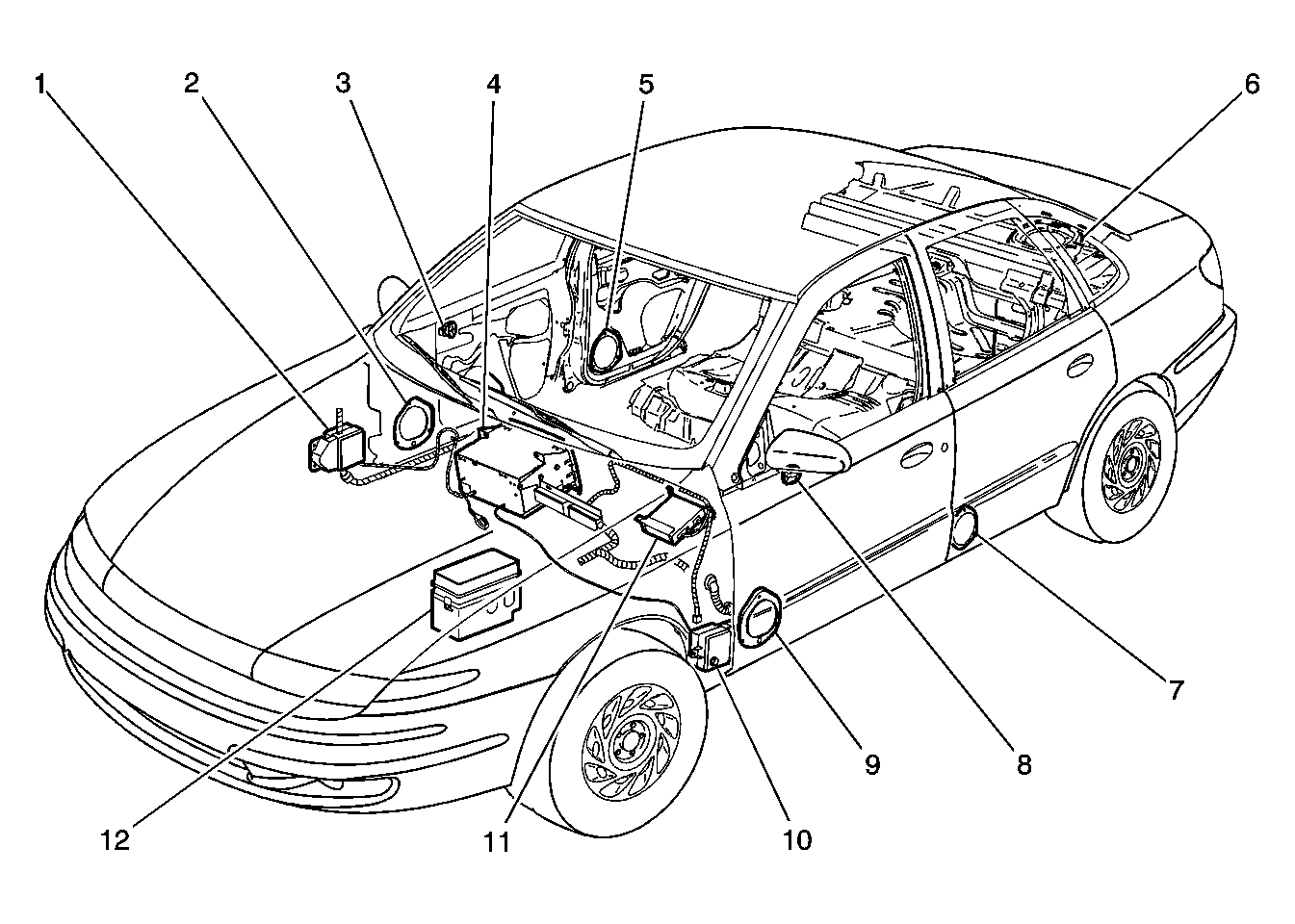

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Fuse Block- I/P- Right |
| 2 | Speaker- RF (Woofer) |
| 3 | Speaker- RF (Tweeter) |
| 4 | Radio |
| 5 | Speaker- RR |
| 6 | Speaker- Subwoofer |
| 7 | Speaker- LR |
| 8 | Speaker- LF (Tweeter) |
| 9 | Speaker- LF (Woofer) |
| 10 | Fuse Block- I/P- Left |
| 11 | Audio Amplifier |
| 12 | Fuse Block- Underhood |

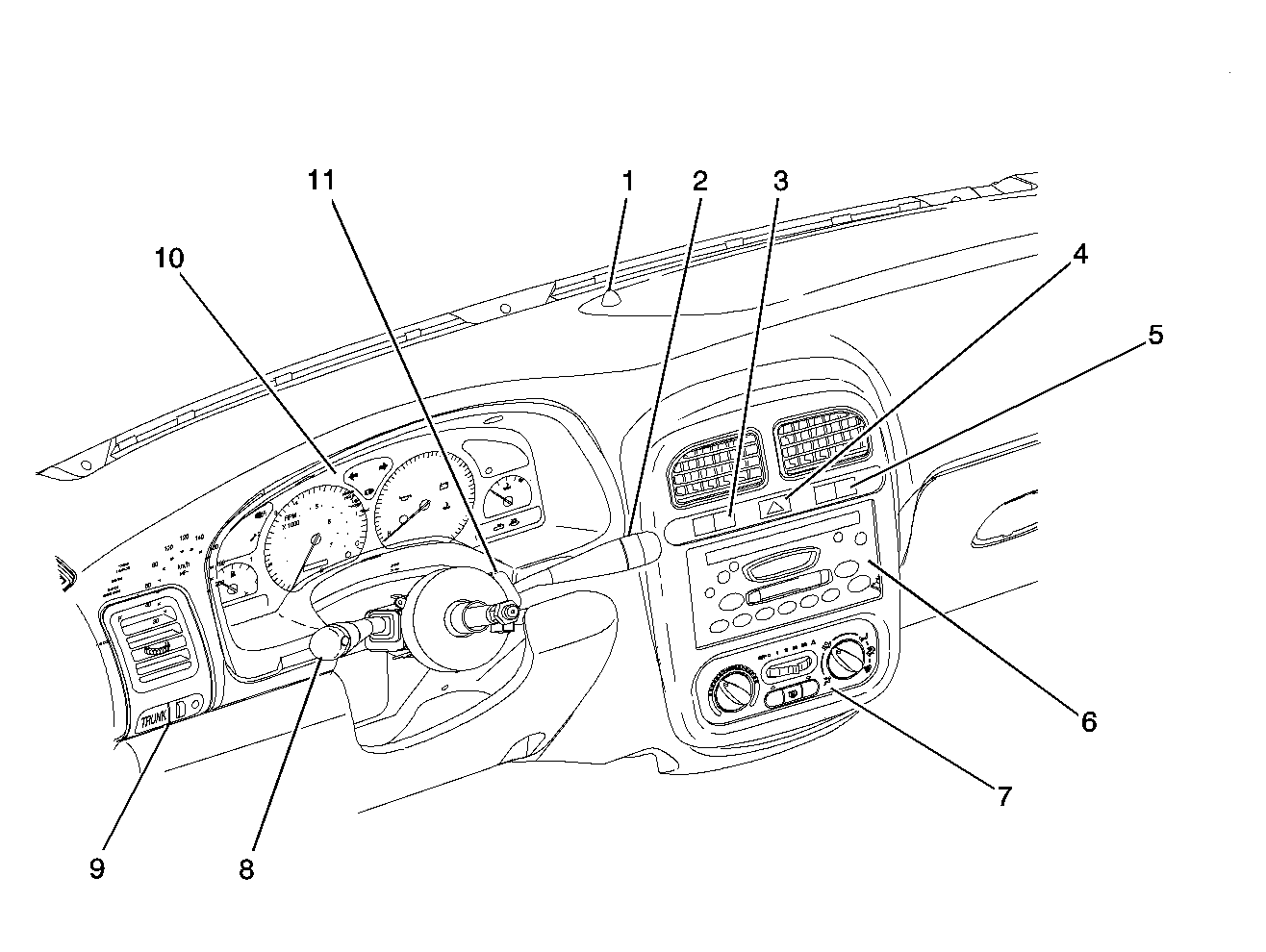

Callouts For Fig 2
| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Windshield Wiper/Washer Switch |
| 3 | Left Heated Seat/Fog Lamp Switch |
| 4 | Hazard Switch |
| 5 | Right Heated Seat/Traction Switch |
| 6 | Radio |
| 7 | HVAC Control Module |
| 8 | Headlamp/Turn Signal Switch |
| 9 | Dimmer/Rear Compartment Lid Release Switch |
| 10 | Instrument Panel Cluster (IPC) |
| 11 | Ignition Lock Cylinder Solenoid |
