2005 Pontiac GTO AutomaticFACTORY OEM SERVICE PROCEDURE

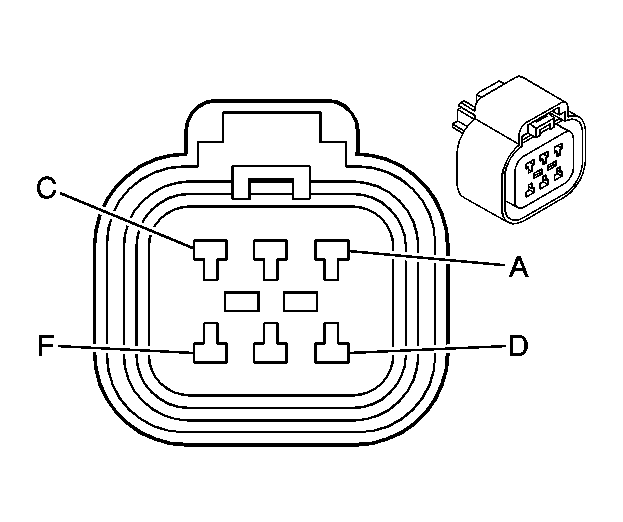

Throttle Actuator Control (TAC) Module Connector End Views
Throttle Actuator Control Module
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | BN | 582 | Throttle Motor Ground |
| B | YE | 581 | Throttle Motor Voltage |
| C | BN/WH | 1704 | Low Reference Signal |
| D | GN | 485 | Throttle Position Sensor Signal |
| E | L-BU/BK | 1688 | 5-Volt Reference |
| F | PU | 486 | Throttle Position Sensor Signal |
