2005 Pontiac G6 BaseFACTORY OEM SERVICE PROCEDURE
Headlamp Switch Replacement
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Switch Replacement

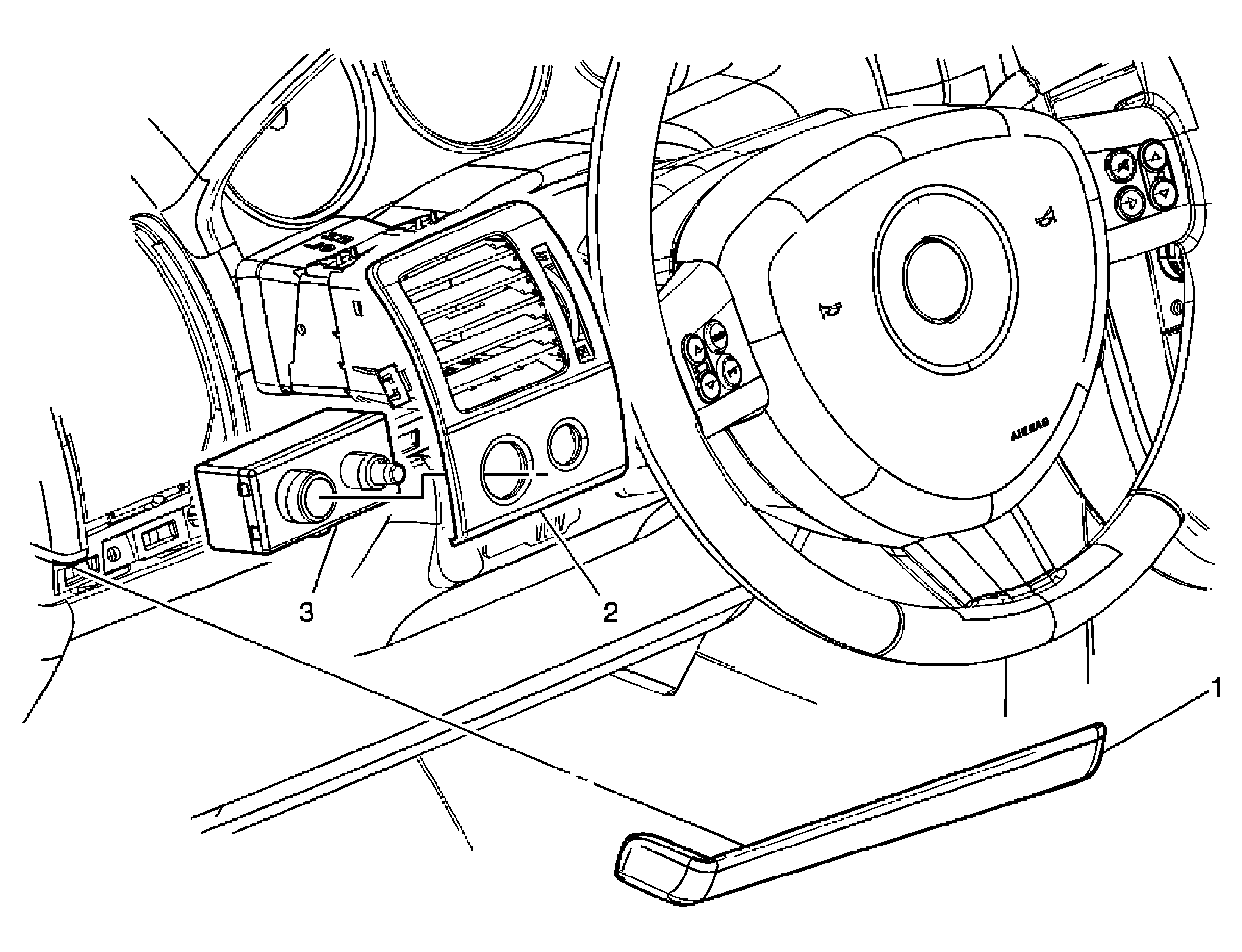

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| Headlamp and Instrument Panel (I/P) Lamp Dimmer Switch Replacement | |
| 1 | Molding Assembly, I/P Steering Column Opening |
| 2 | Outlet Assembly, I/P A/C Left Tip:Â
|
| 3 | Switch Assembly, Headlamp and I/P Lamp Dimmer |
