2005 Pontiac G6 BaseFACTORY OEM SERVICE PROCEDURE
Multifunction Switch - I/P
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Lighting Systems Connector End Views
Connector Part Information
|
Terminal Part Information
|

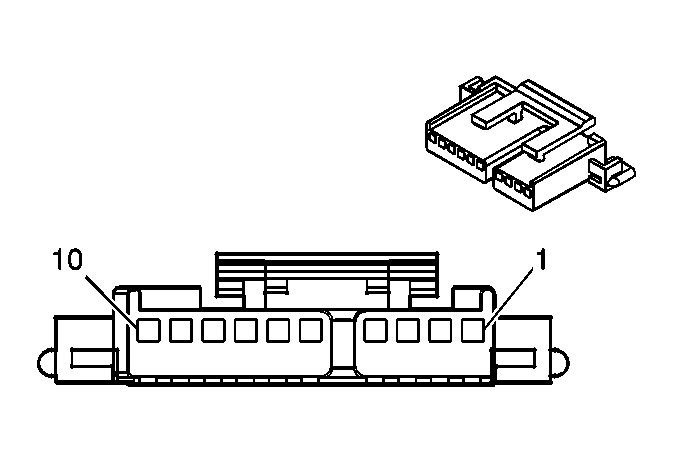

Multifunction Switch - I/P
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | BK/WH | 1551 | Ground |
| 2 | OG | 1816 | DIC Set/Reset Switch Signal |
| 3 | GY | 8 | Instrument Panel Lamp Supply Voltage |
| 4 | BN/WH | 1571 | Traction Control Switch Signal (NW9) |
| 5 | OG | 1328 | DIC Menu Signal |
| 6 | PK | 893 | DIC Info Down Signal |
| 7 | YE | 1327 | DIC Info Up Signal |
| 8 | TN | 2144 | Hazard Switch Signal |
| 9-10 | - | - | Not Used |
