2005 Pontiac G6 BaseFACTORY OEM SERVICE PROCEDURE

Power Outlet Component Views

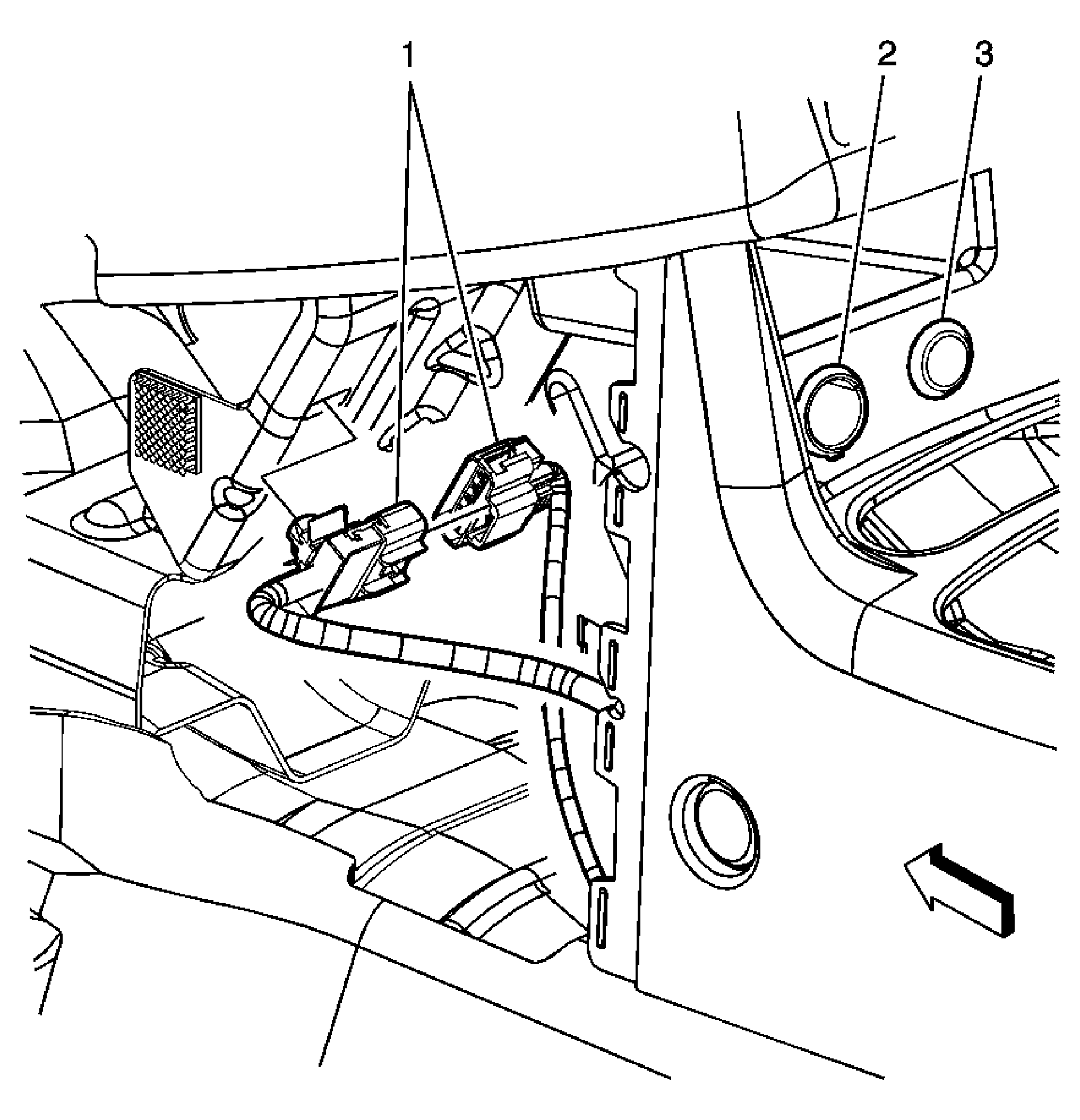

Fig 1: Left Front of Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C214
2	Cigar Lighter
3	Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet (w/o NW7/ NW9)

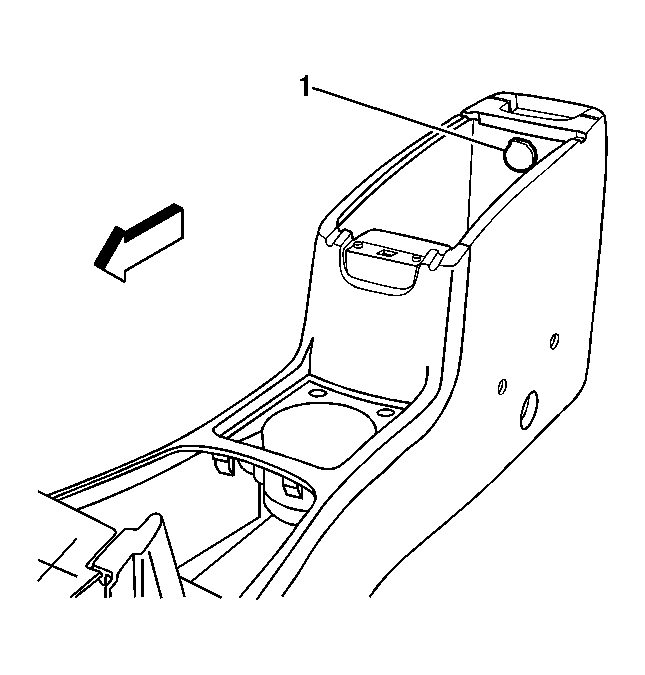

Fig 2: Rear of Center Console Compartment View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (NW7/NW9)
