2005 Pontiac G6 BaseFACTORY OEM SERVICE PROCEDURE

Installation Procedure

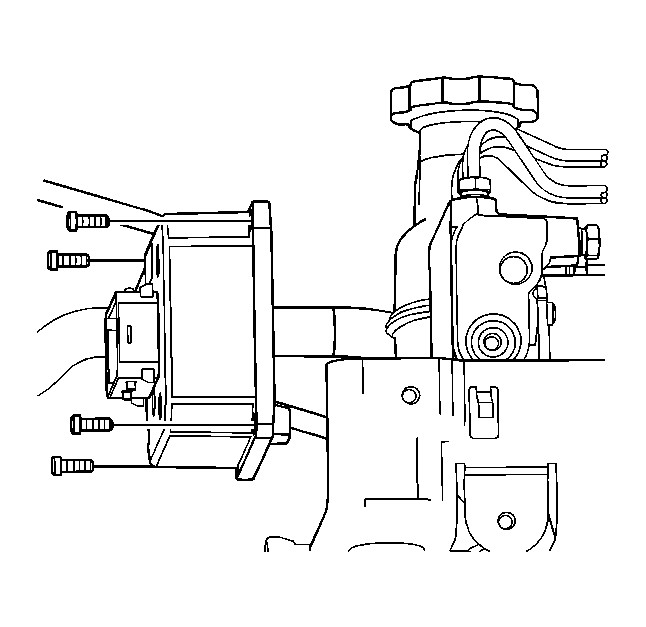

Fig 1: Removing 4 EBCM-To-BPMV Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Clean the sealing surface of the BPMV with denatured alcohol and a clean shop cloth.
Use care when aligning the EBCM to the BPMV electrical terminals. Install the EBCM to the BPMV.

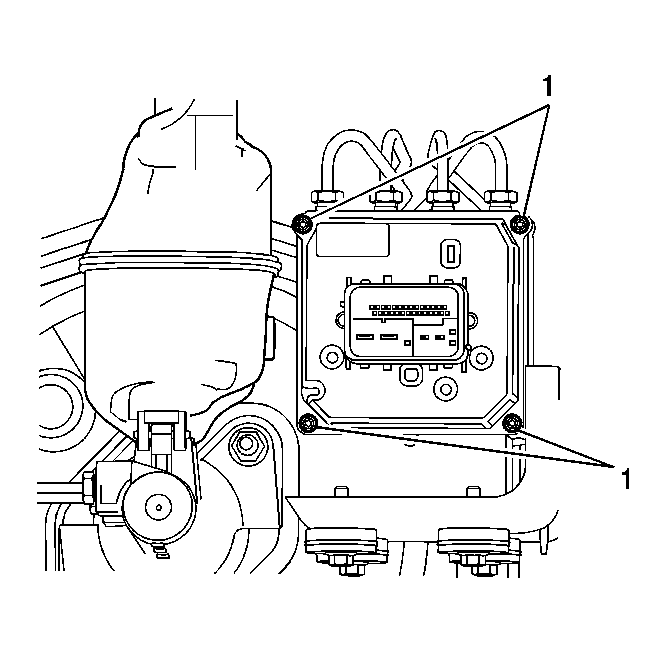

Fig 2: Installing 4 EBCM-to-BPMV Retaining Bolts

Courtesy of GENERAL MOTORS CORP.
