2005 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views

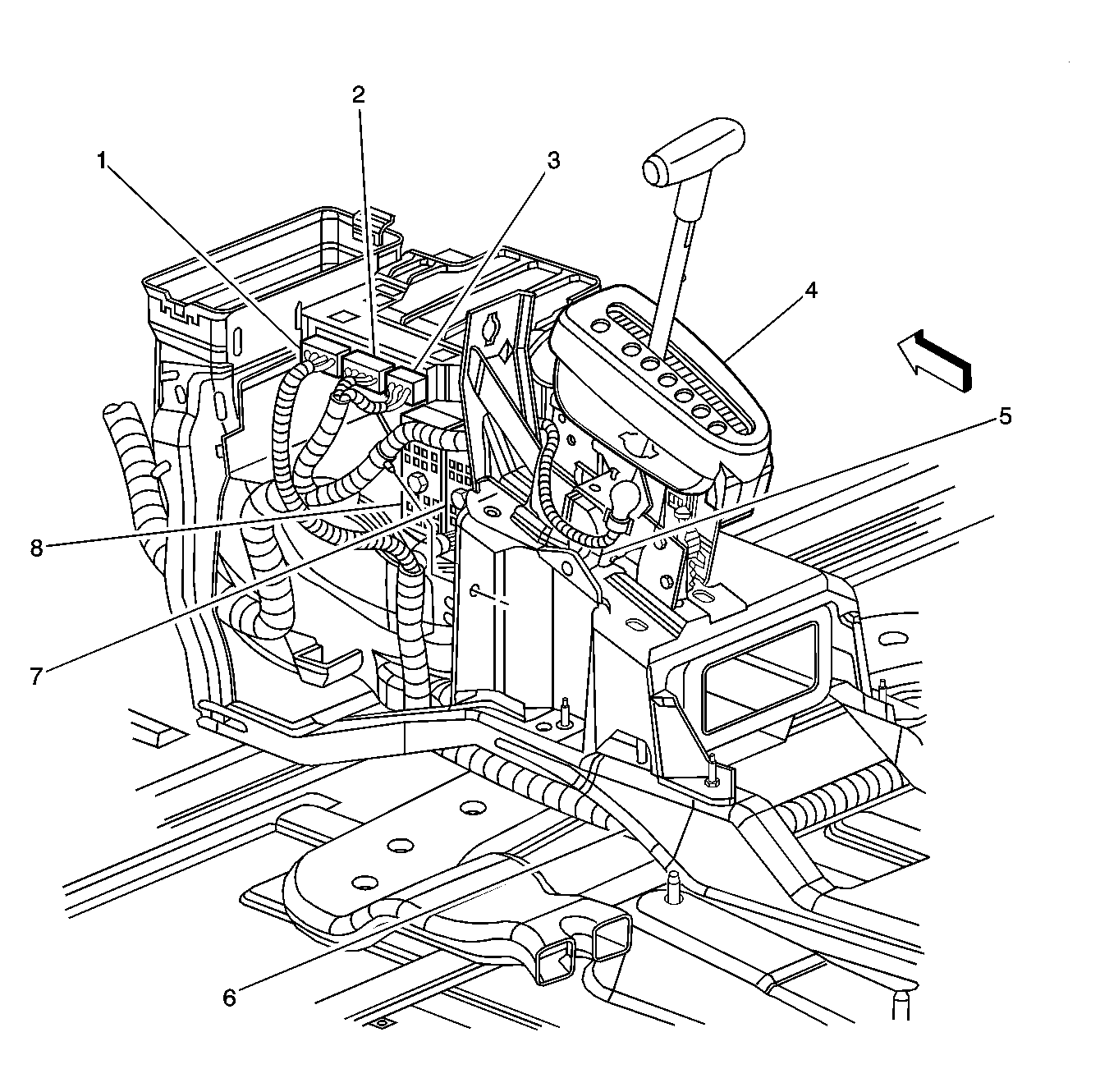

| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) C2 |
| 2 | Body Control Module (BCM) C1 |
| 3 | Body Control Module (BCM) C0 |
| 4 | Automatic Transmission Floor Shift Control |
| 5 | Automatic Transmission Floor Shift Control Connector |
| 6 | Splice Pack 315 |
| 7 | Fuse Block - Center Console C2 |
| 8 | Fuse Block - Center Console C1 |

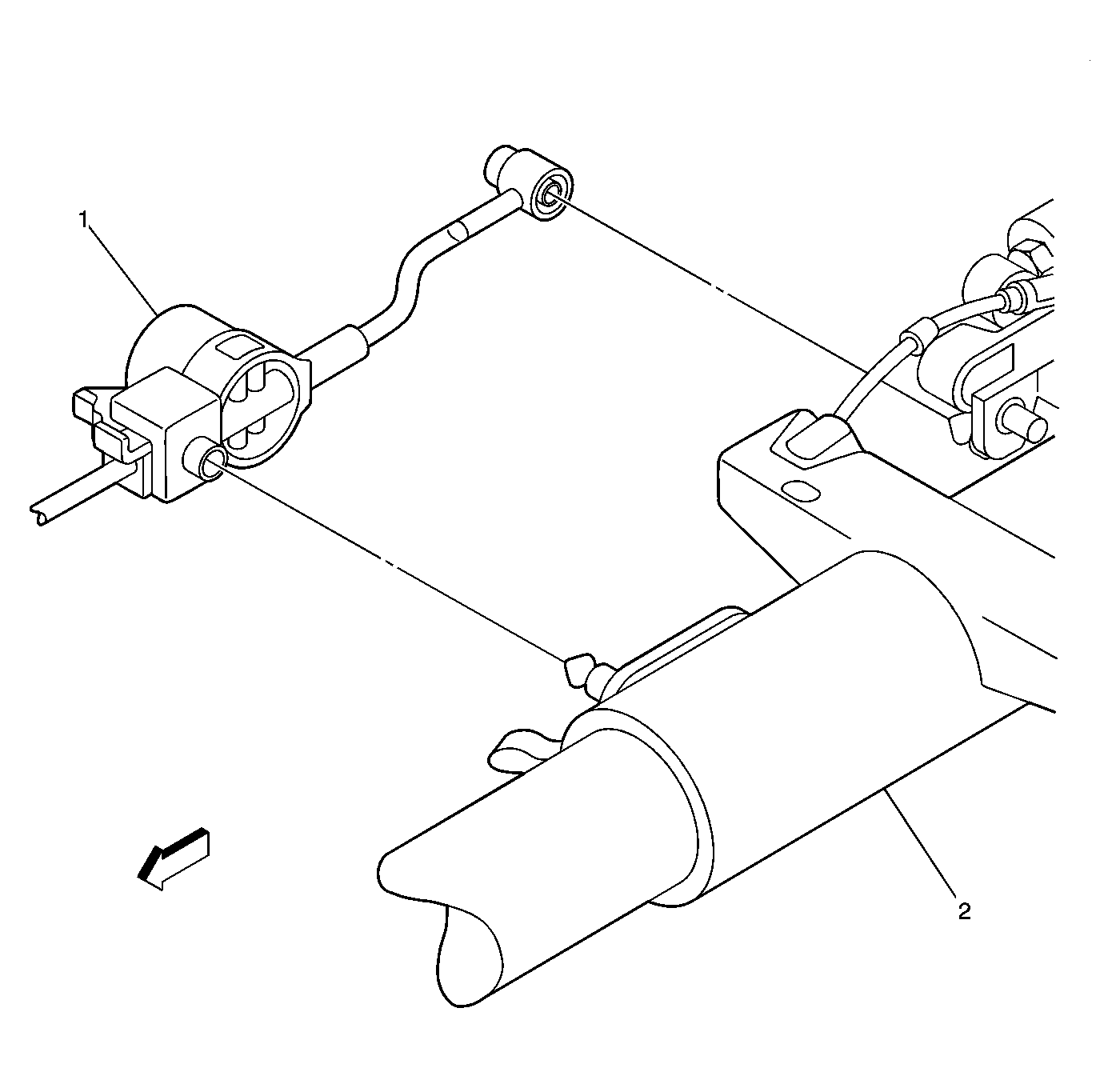

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid |
| 2 | Steering Column |
