2005 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

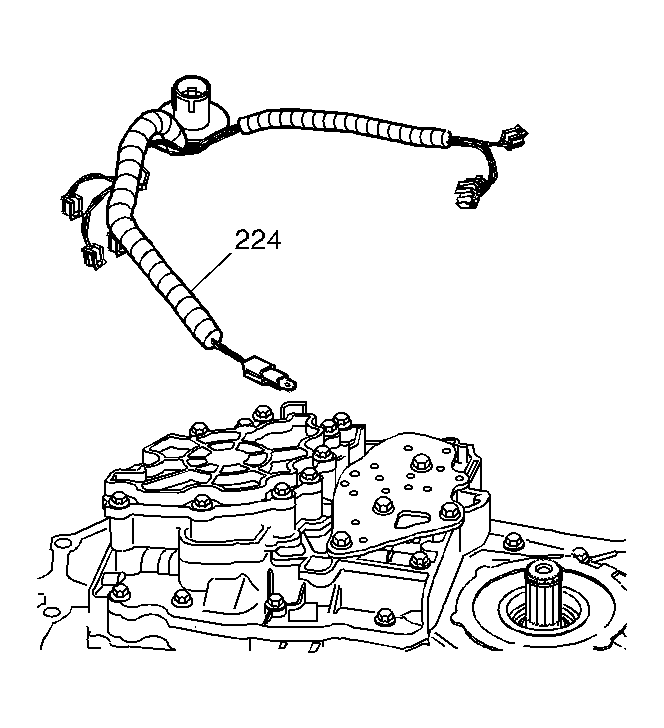

Fig 1: View Of Transmission Internal Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Connect the wiring harness (224).

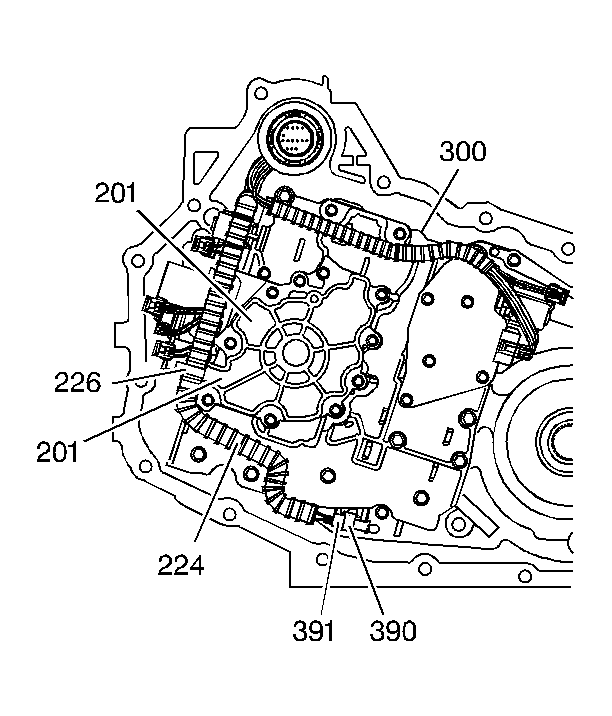

Fig 2: Connecting Solenoid Valve, TFP Manual Valve Position Switch & Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
Install the case side cover. Refer to Case Side Cover Replacement .

NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle.

Fill the transaxle to the proper level. Refer to Fluid Capacity Specifications .
Inspect the transaxle fluid level. Refer to Transmission Fluid Checking Procedure .
Inspect for fluid leaks.
