2005 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE

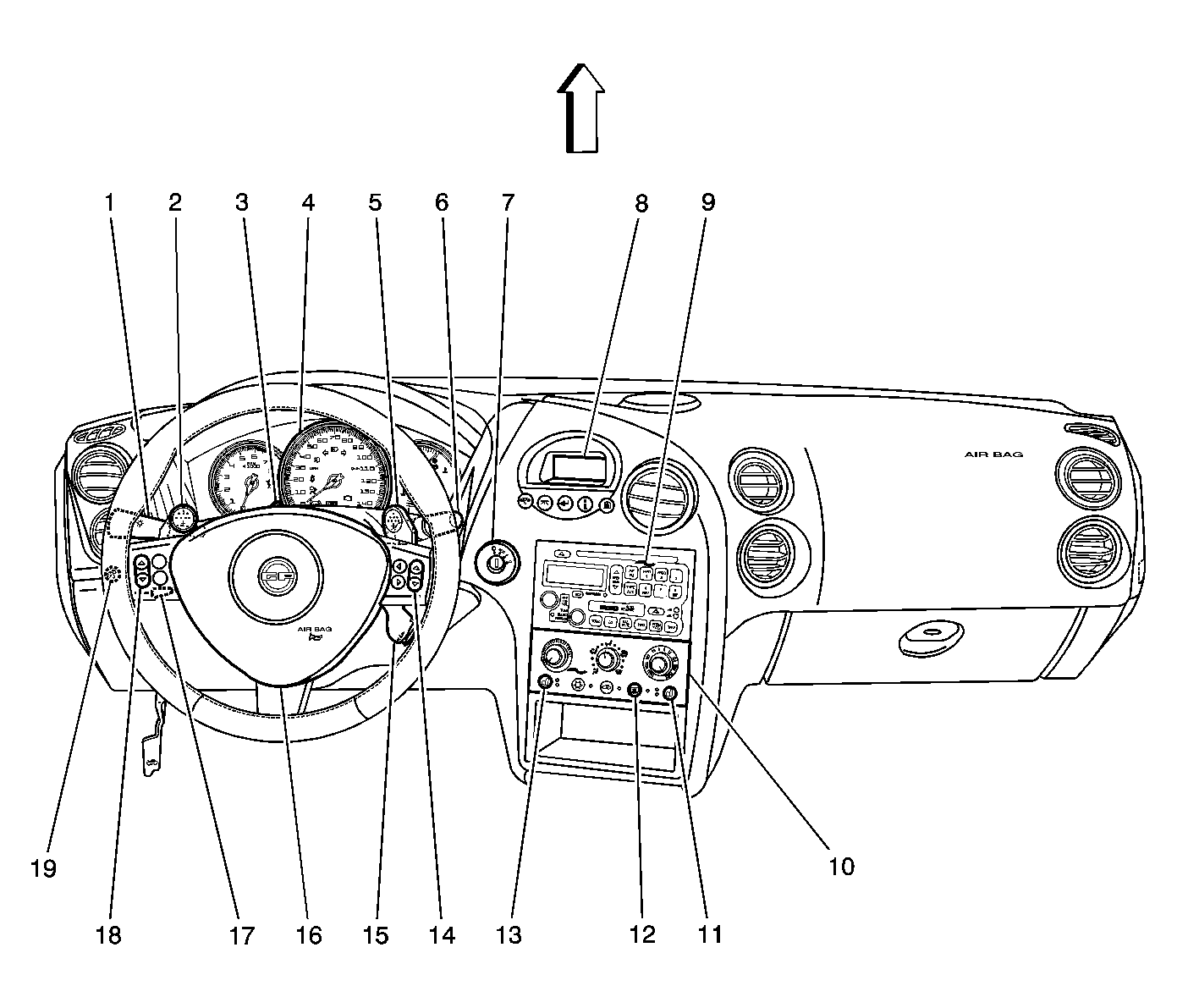

Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Multifunction Turn Signal Lever |
| 2 | TAP Shift Switch - Left |
| 3 | Hazard Warning Switch |
| 4 | Instrument Panel Cluster (IPC) |
| 5 | TAP Shift Switch - Right |
| 6 | Windshield Wiper/Washer Switch |
| 7 | Ignition Switch |
| 8 | Driver Information Center (DIC) |
| 9 | Radio |
| 10 | HVAC Control Module |
| 11 | Heated Seat Switch - Front Passenger |
| 12 | Rear Defogger Switch |
| 13 | Heated Seat Switch - Driver |
| 14 | Steering Wheel Controls - Right |
| 15 | Cruise Control Switch |
| 16 | Inflatable Restraint Steering Wheel Module |
| 17 | Tilt Steering Wheel Lever |
| 18 | Steering Wheel Controls - Left |
| 19 | Interior Lamp Switch |
