Installation Procedure

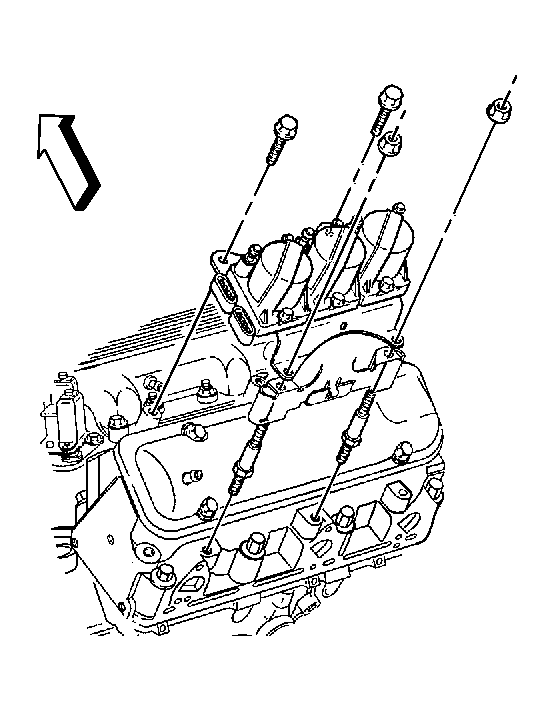

- Install the ignition control module on the bracket.
- Install the coils to the ignition control module.
- Reinstall the fasteners securing the ignition control module assembly to the engine.
- Reinstall the screws.
Tighten: Tighten the screws to 4.5 N.m (40 lb in).
- Connect the spark plug wires as noted during removal.
- Connect the electrical connectors to the ignition control module.
