2005 Pontiac Aztek Base, FWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the accelerator cable shield, if equipped.

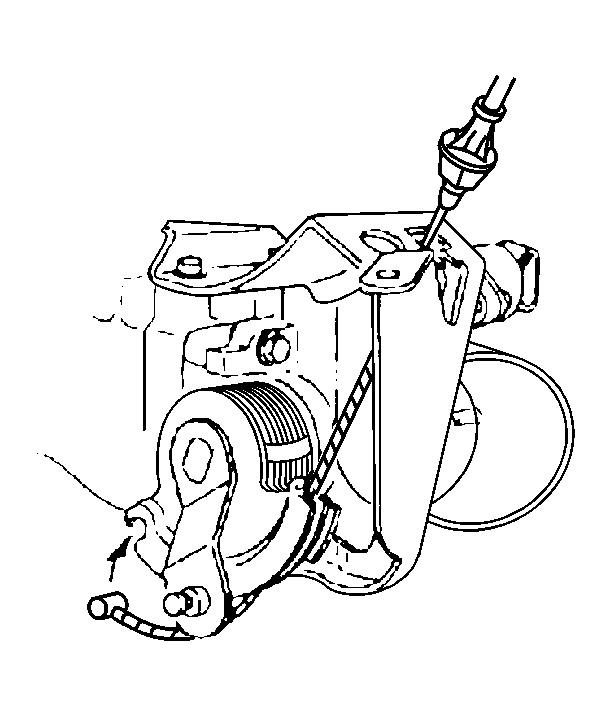

- Disconnect the accelerator cable from the throttle body lever.
- Disconnect the accelerator cable from the accelerator cable bracket.
- Remove the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.
- Disconnect the accelerator cable from the accelerator pedal.

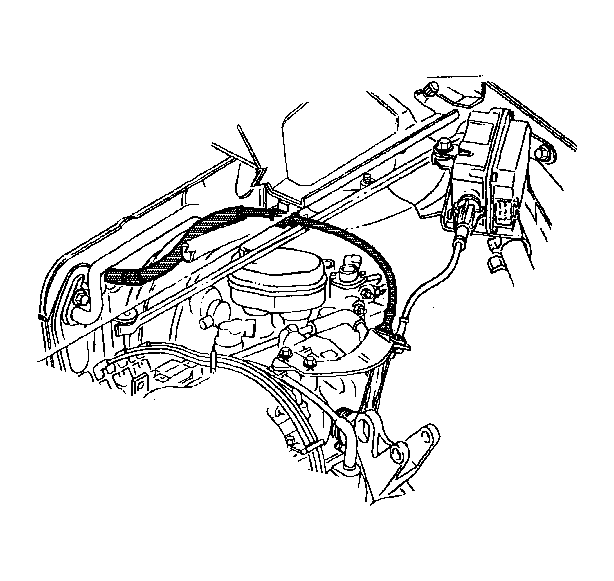

- Squeeze the accelerator cable cover tangs and push the accelerator cable through the bulkhead.
- Remove the accelerator cable from the vehicle. Note the cable routing for aid in installation.
