2005 Pontiac Aztek Base, AWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

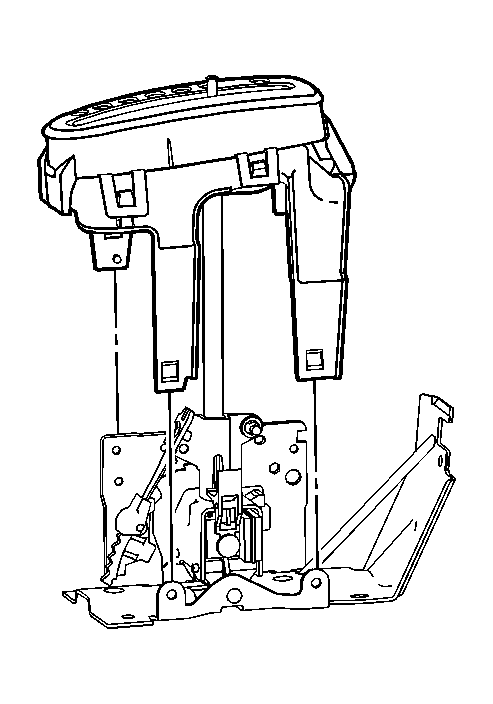

Fig 1: Identifying Shift Indicator Fasteners

GM908764

Courtesy of GENERAL MOTORS CORP.

Carefully install the shift indicator.

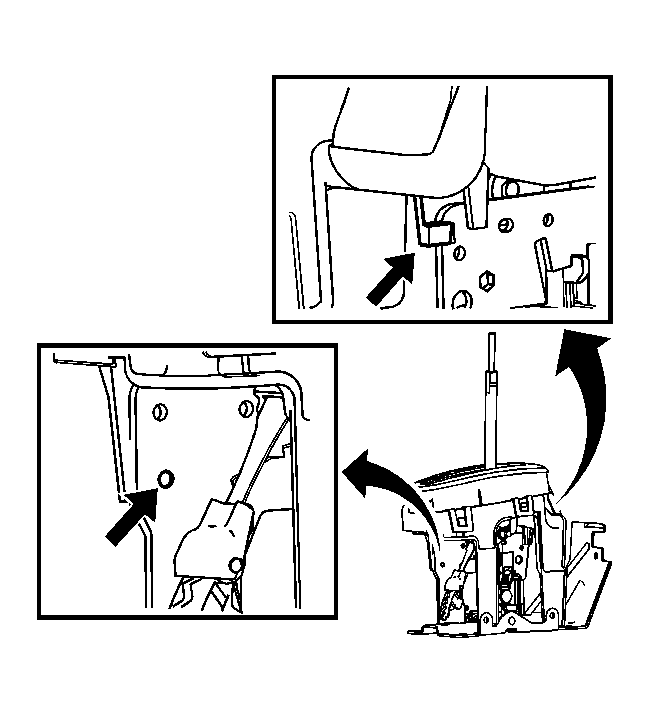

Fig 2: View Of Alignment Pin And Alignment Tab

GM908768

Courtesy of GENERAL MOTORS CORP.

Ensure that the alignment pin and alignment tab are properly engaged.

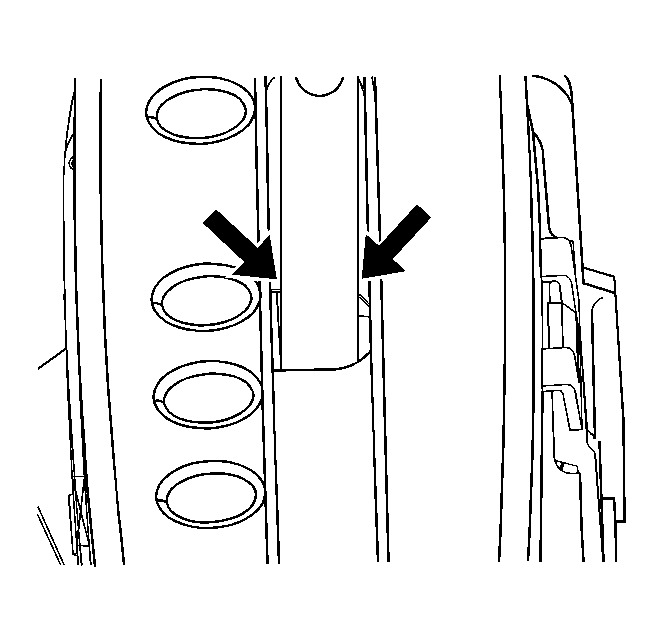

Fig 3: Centering Shift Lever In Shift Indicator

GM908777

Courtesy of GENERAL MOTORS CORP.

Ensure that the shift lever is centered in the shift indicator.

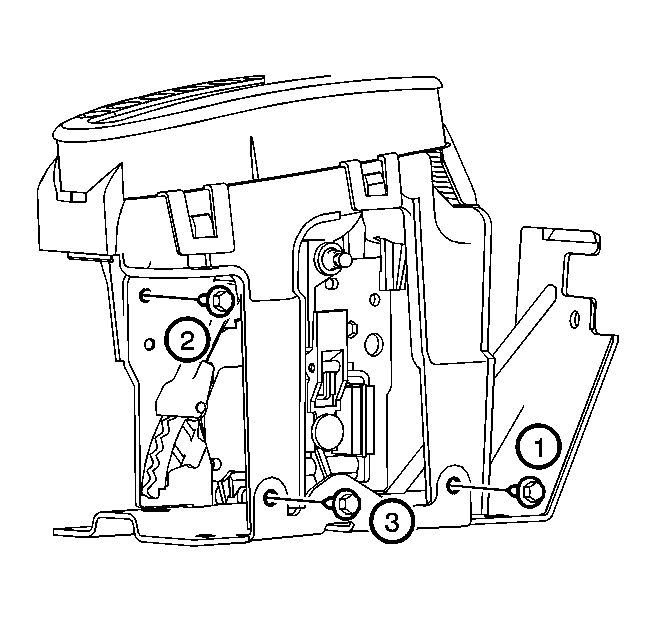

Fig 4: Identifying Shift Indicator Fasteners

GM908750

Courtesy of GENERAL MOTORS CORP.
