Installation Procedure

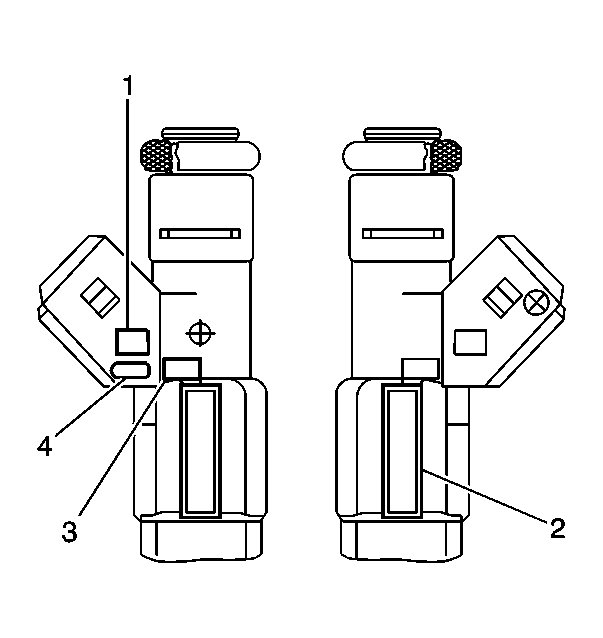

The fuel injector assembly (1) is stamped with a part number identification (2), a manufacturing date (3), a week code (1), and a production plant number (4).
- Coat all new O-rings with clean engine oil before installing
- Install the fuel injector lower O-ring (4).
- Install the fuel injector upper O-ring (2).
- Install the fuel injector (3) to the fuel rail.
- Install the fuel injector retaining clip (1).
- Install the fuel rail. Refer to Fuel Rail Assembly Replacement (L36) or Fuel Rail Assembly Replacement (L67) .
