Removal Procedure
The cruise control module is mounted to the left strut tower and must be serviced as a complete unit.
- Remove the cruise control cable from the cruise control module. Refer to Cruise Control Cable Replacement (3.4L) Cruise Control Cable Replacement (3.8L) .

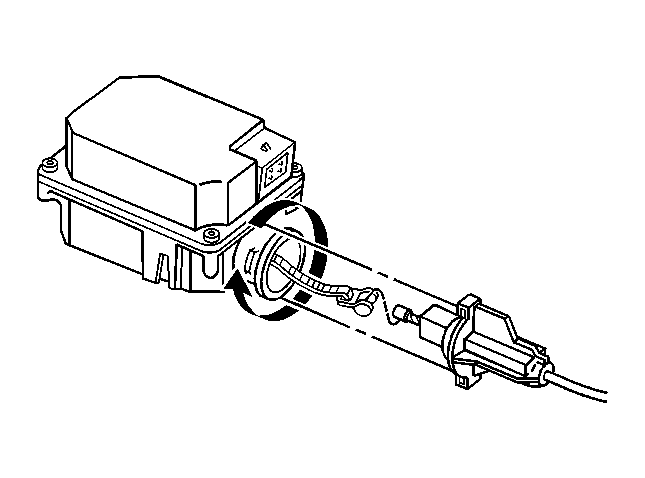

- Disconnect the cruise control module electrical connector.

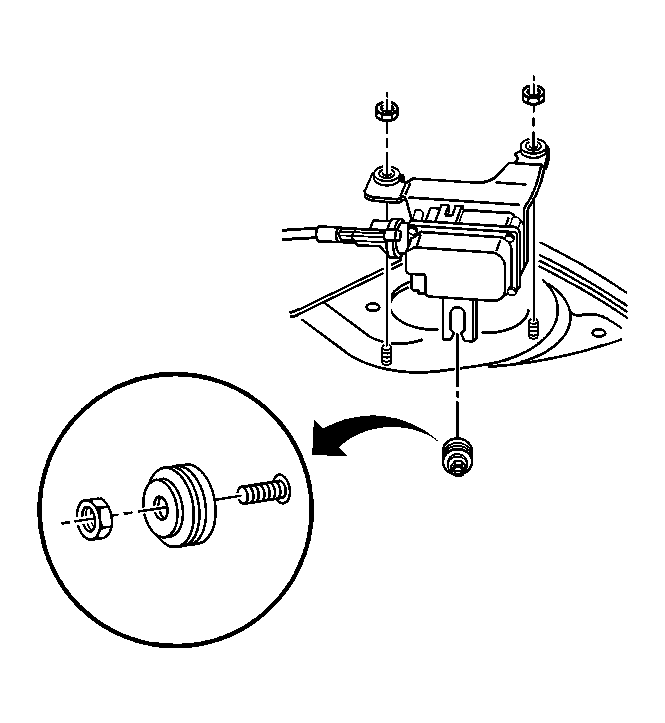

- Remove the cruise control module shock tower nuts.
- Remove the cruise control module.
