2005 Pontiac Aztek Base, AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .

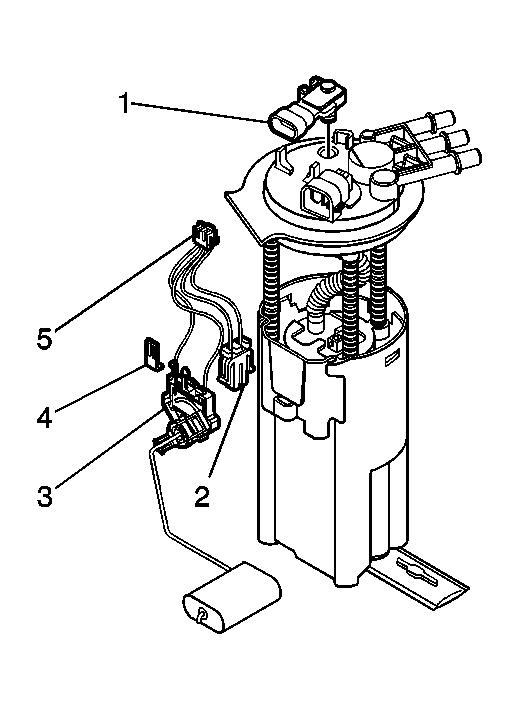

- Disconnect the fuel pump electrical connector (2).
- Remove the fuel level sensor electrical connector retaining clip (4).
- Disconnect the fuel level sensor electrical connector from under the fuel sender cover (5).
- Remove the fuel level sensor retaining clip.
- Squeeze the locking tangs and remove the fuel level sensor (3) from the modular fuel sender.
