Installation Procedure
- Install the air intake duct to the MAF sensor.
- Install the air intake duct to the throttle body and the air cleaner cover to the air cleaner assembly.

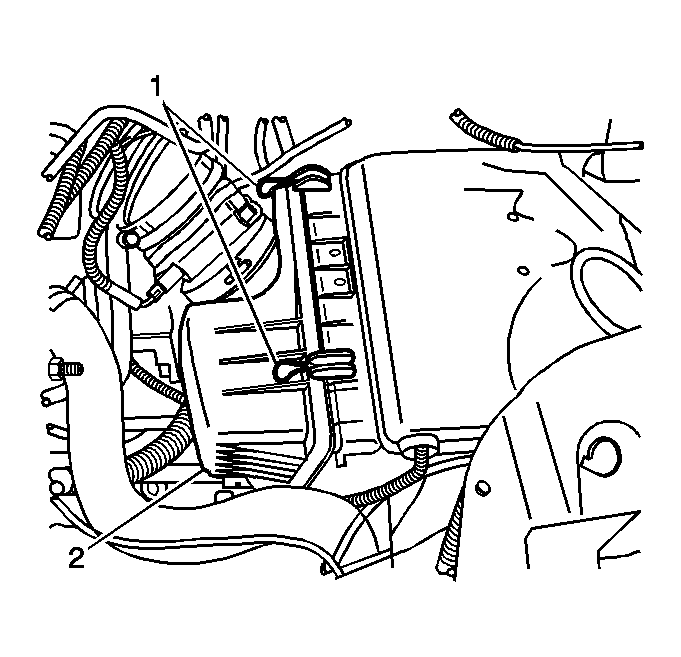

- Latch the air cleaner cover clips (1).
- Reconnect the MAF sensor electrical connector (2).
- Reconnect the vent tube to the air intake duct.
- Install the IAT sensor.

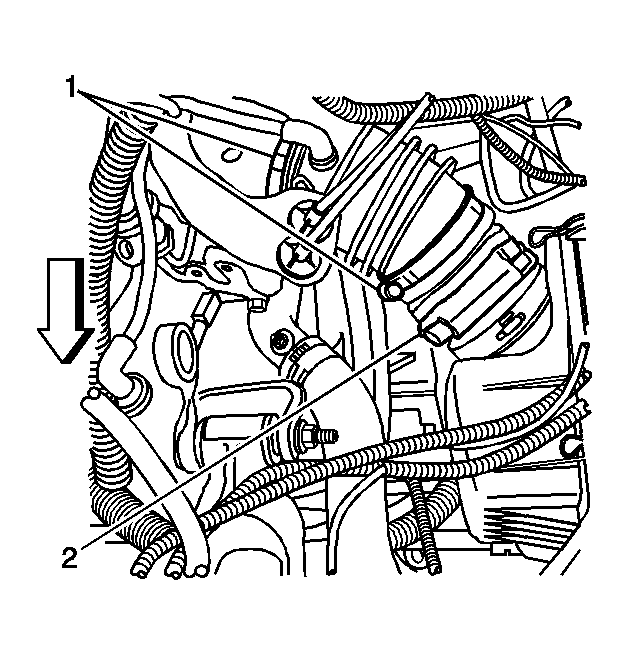

- Tighten the 2 intake air duct clamps (1).
Tighten: Tighten the intake air duct clamps to 2 N.m (18 lb in).
