2005 Pontiac Aztek Base, AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect the accelerator cable cross slug from the throttle body lever.
- Disconnect the accelerator cable from the accelerator cable bracket.
- Disconnect the cruise control cable from the throttle lever and accelerator bracket, if applicable.

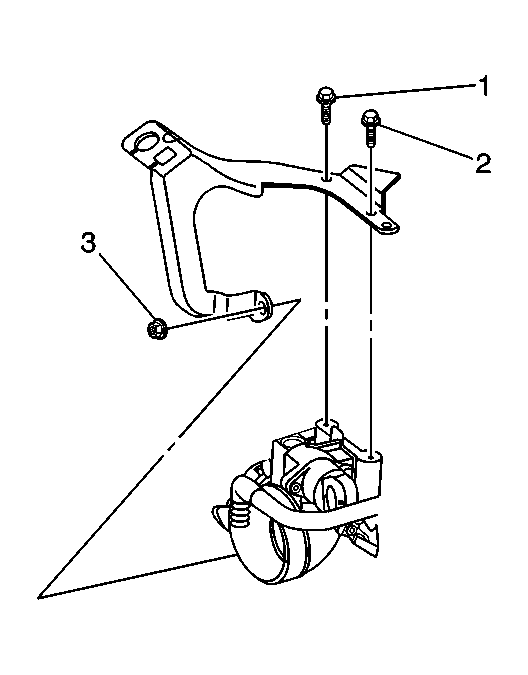

- Remove the nut (3) and bolts (1, 2) holding the accelerator cable bracket to the throttle body.
- Remove the accelerator cable bracket.
