2004 Pontiac Vibe GTFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
The TP sensor is an electrical component. Do not soak the TP sensor in any liquid cleaner or solvent as damage may result.
- Remove the inlet air duct from between the air cleaner and throttle body.

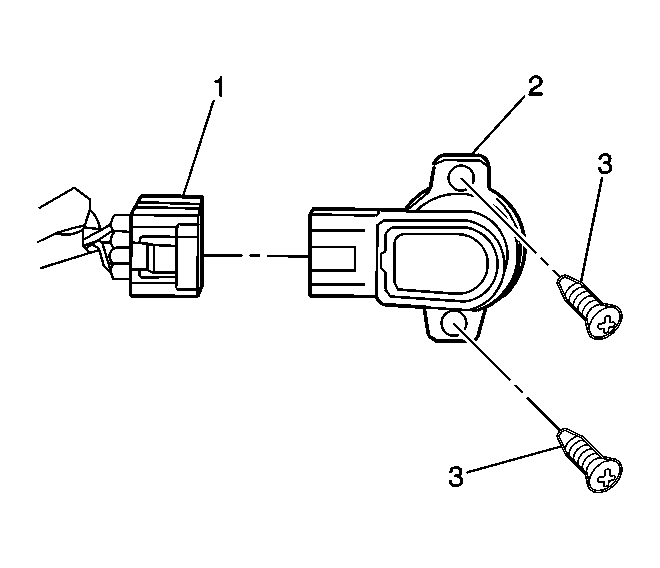

- Remove the 2 fasteners (3) from the throttle position (TP) sensor (2).
- Remove the TP sensor (2) from the throttle body.
