Installation Procedure

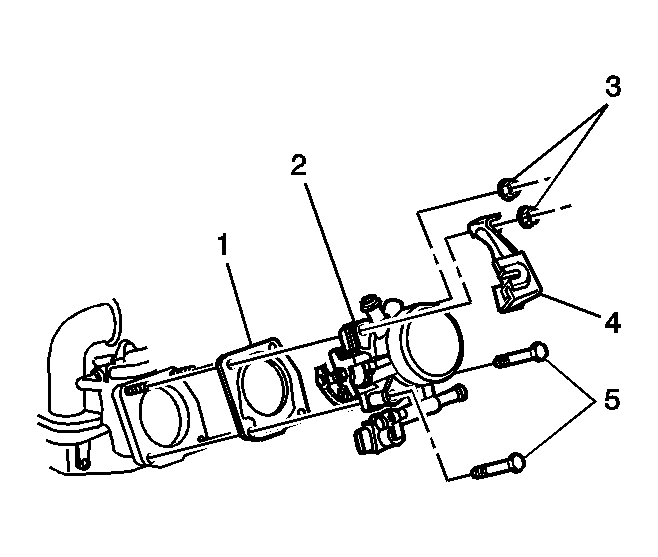

- Install a new throttle body gasket (1).
- Install the throttle body (2) onto the intake manifold with the 2 bolts (5).
- Install the accelerator cable bracket (4) and the 2 nuts (3) to the throttle body.
- Tighten the 4 throttle body fasteners.
Tighten: Tighten the fasteners to 22 N.m (16 lb ft).

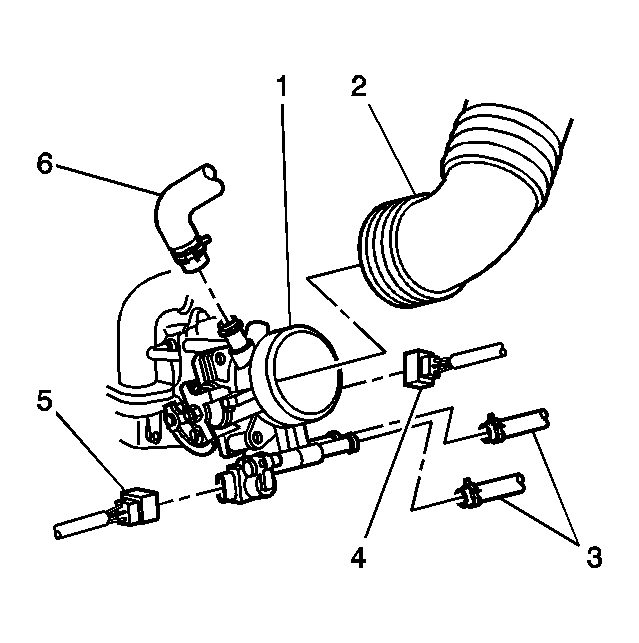

- Connect the 2 coolant hoses (3) to the throttle body.
- Connect the PCV breather hose (6) to the throttle body (1).
- Connect the IAC valve electrical connector (5).
- Connect the TP sensor electrical connector (4).
- Install the air inlet duct (2).
- Refill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.

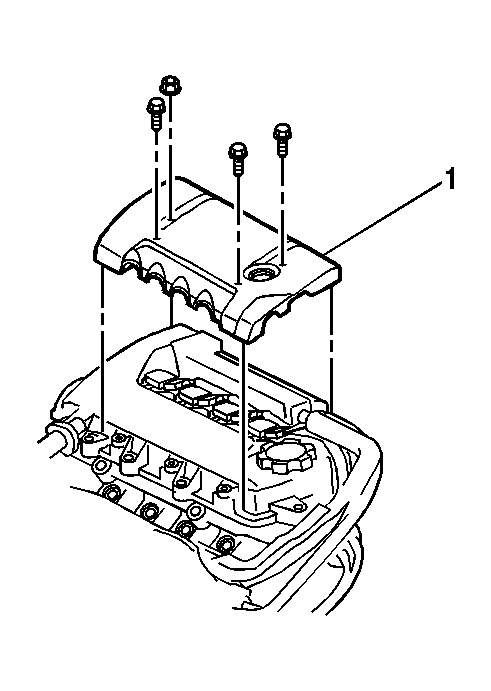

- Install the engine cover (1) to the engine.
- Secure the engine cover (1) with the 4 fasteners.
Tighten: Tighten the fasteners to 7 N.m (62 lb in).
