Air Intake System Description: Notes

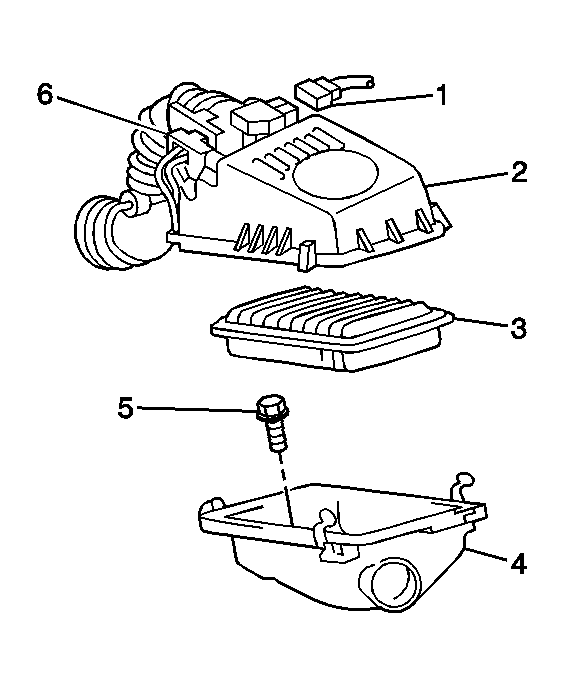

The air induction system provides air with oxygen for the combustion process. The air cleaner keeps dirt from entering the engine. Outside air is drawn into the air cleaner lower assembly (4) and passes through the air cleaner element (3). Next the air enters the air cleaner upper assembly (2) and flows past the mass air flow (MAF) sensor (1). The air then flows through the duct, to the throttle body, and into the intake manifold. Finally the air travels into the cylinder head and through the intake port, ending in the combustion chamber. The air cleaner upper assembly (2) contains MAF sensor (1) and the auxiliary intake air control solenoid (6).
The following components are directly or indirectly a part of the air supply system.
