2004 Pontiac Vibe Base, AWDFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Connector End Views
Shiftlock Control Module Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | WH/BK | Ground |
| 2 | - | Not Used |
| 3 | GN/W | Stop Lamp Switch Signal |
| 4 | - | Not Used |
| 5 | BK/WH | Shiftlock Control Module Feed Circuit |

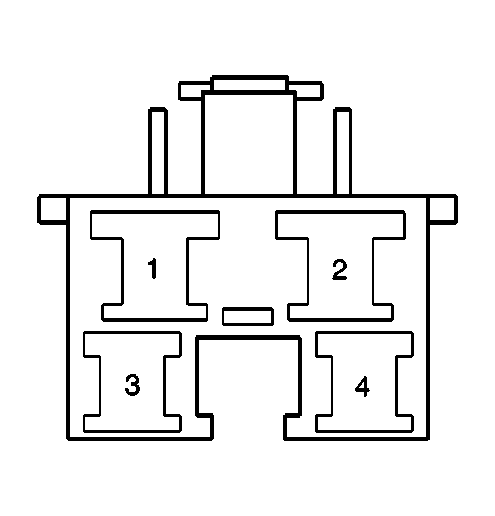

Stop Lamp Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | GN/WH | Stop Lamp Switch Signal Circuit |
| 2 | RD/WH | Stop Lamp Switch Feed Circuit |
| 3 | GN/OR | Cruise Control Servo Interrupt Circuit |
| 4 | RD/YE | Cruise Control Module Interrupt Circuit |
