2004 Pontiac Vibe Base, AWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    Fig 1: View Of Engine Top Cover, Plastic Retainers And Fasteners
    GM856569Courtesy of GENERAL MOTORS CORP.
  1. Remove the 2 fasteners.
  2. Remove the 2 plastic retainers.
  3. Remove the engine cover (1) from the engine.
  4. Relieve the fuel pressure. Refer to Fuel Pressure Relief Procedure (FWD)  or Fuel Pressure Relief Procedure (AWD) .
  5. Remove the quick connect coupling cover.

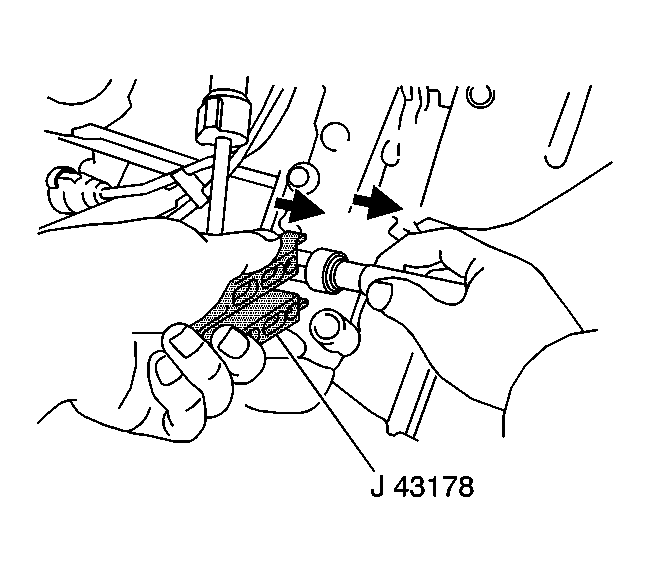

    6. Fig 2: Disconnecting Coupling For Fuel Feed Hose
    GM236747Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the coupling for the fuel feed hose from the fuel feed pipe of the fuel rail using the J 43178  . Use a shop towel in order to catch any remaining fuel that may leak. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
    7. Fig 3: PCV Breather Hose
    GM856575Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the breather hose from the cylinder head (1).
    8. Fig 4: Fuel Injectors Electrical Connectors And Clamps
    GM856574Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the four electrical connectors (1) from the fuel injectors.
  9. Release the three clamps (2) from the fuel Injector wire harness.
  10. Lift the fuel Injector wire harness up and away from the fuel rail.
    11. Fig 5: Fuel Rail Components
    GM856571Courtesy of GENERAL MOTORS CORP.
  11. Remove the fastener (2) from the fuel pipe bracket.
  12. Remove the fasteners (1) from the fuel rail (7).
  13. Remove the fuel rail (7) and the spacers (3) from the engine.
  14. Remove the fuel injectors (5) with the O-rings (6) and with the grommets (4).
