Installation Procedure

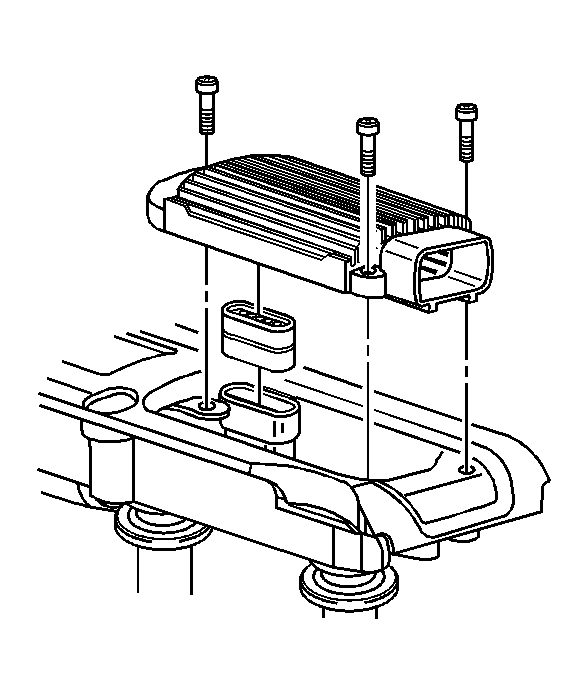

- Install the ignition control module in the ignition coil housing.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the ICM retaining screws.
Tighten: Tighten the retaining screws to 1.5 N.m (13 lb in).
- Connect the ICM harness connector.
- Install the accelerator cable bracket.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the accelerator cable bracket bolt.
Tighten: Tighten the retaining screws to 10 N.m (18 lb in).
- Install the accelerator cable to the bracket.
